BMW R 1250 GS Adventure [2019-2023] - Universal GPS Mount

Universal and adjustable GPS mount

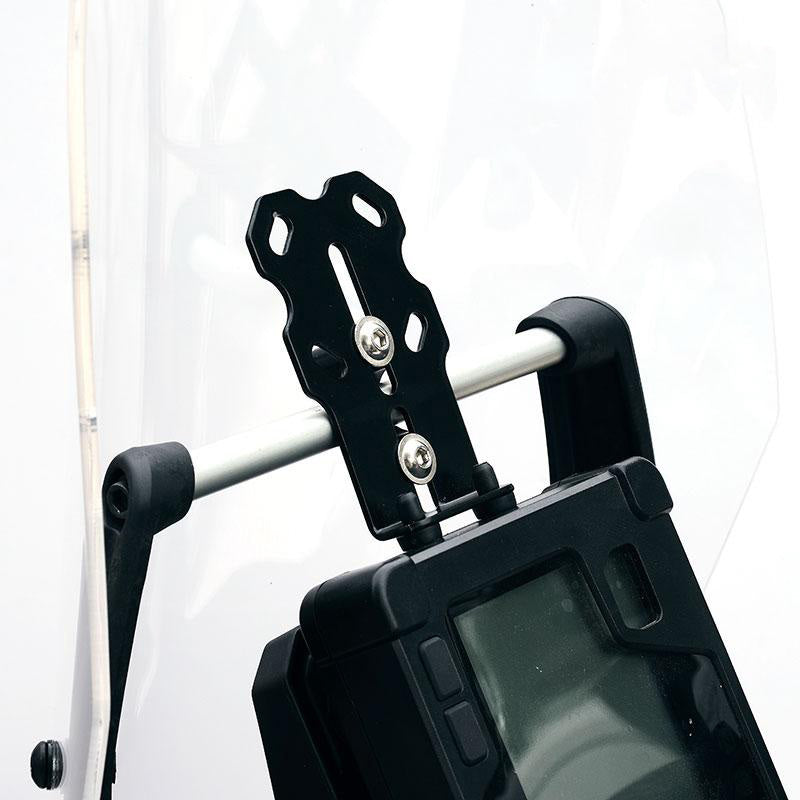

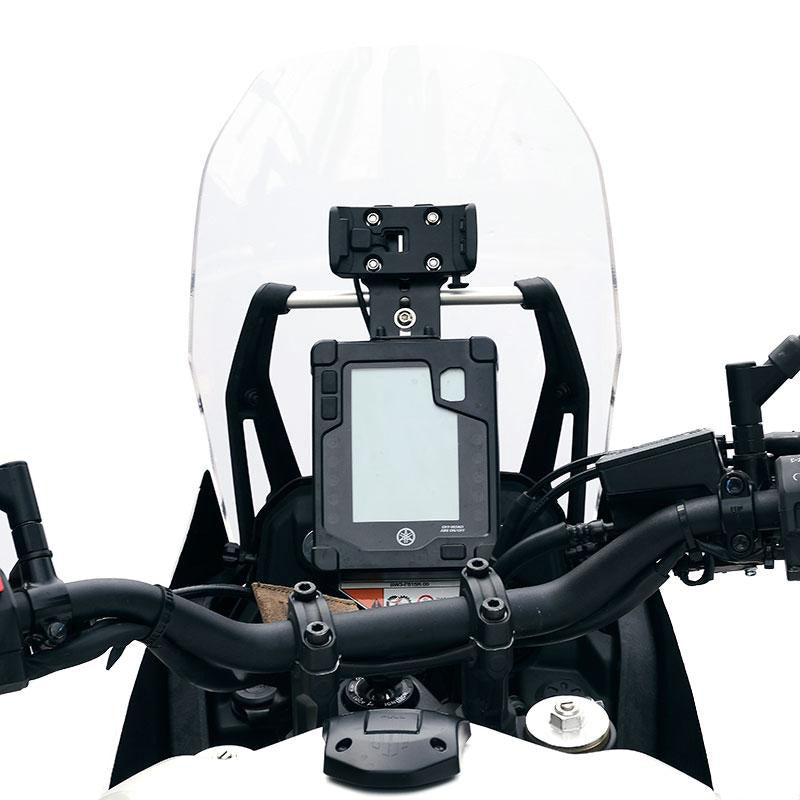

This mount allows a navigation device to be securely attached to support tubes with a diameter of 12 to 25 mm. Two CNC-machined Ergal arms and a sliding base allow adaptation to different installation configurations.

Function and adjustment

• For support tubes with a diameter of 12 to 25 mm

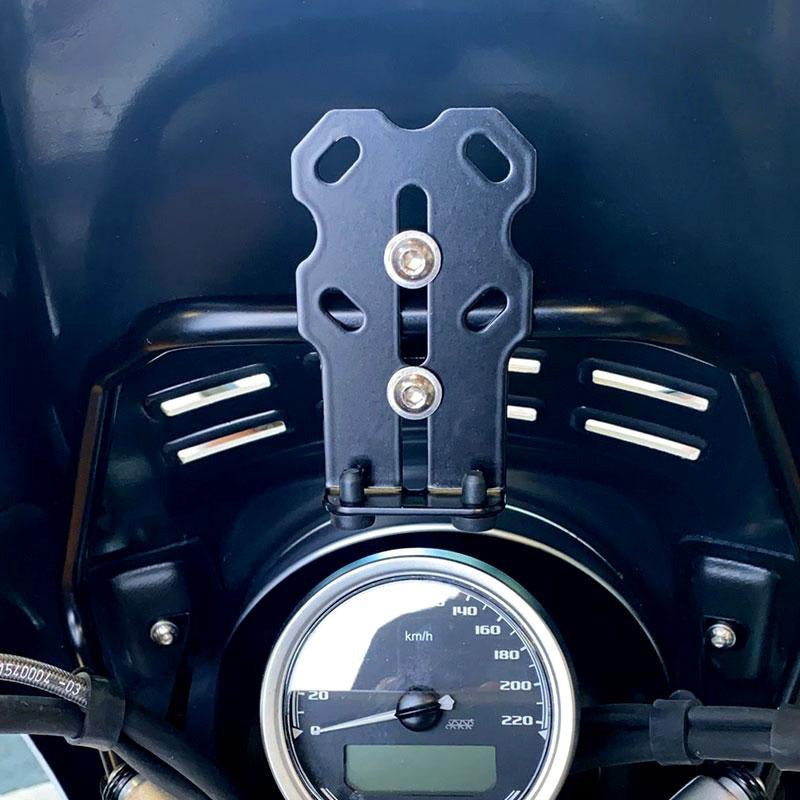

• Sliding steel base, mountable in four different positions where possible
• Two rubber pads on the base provide support

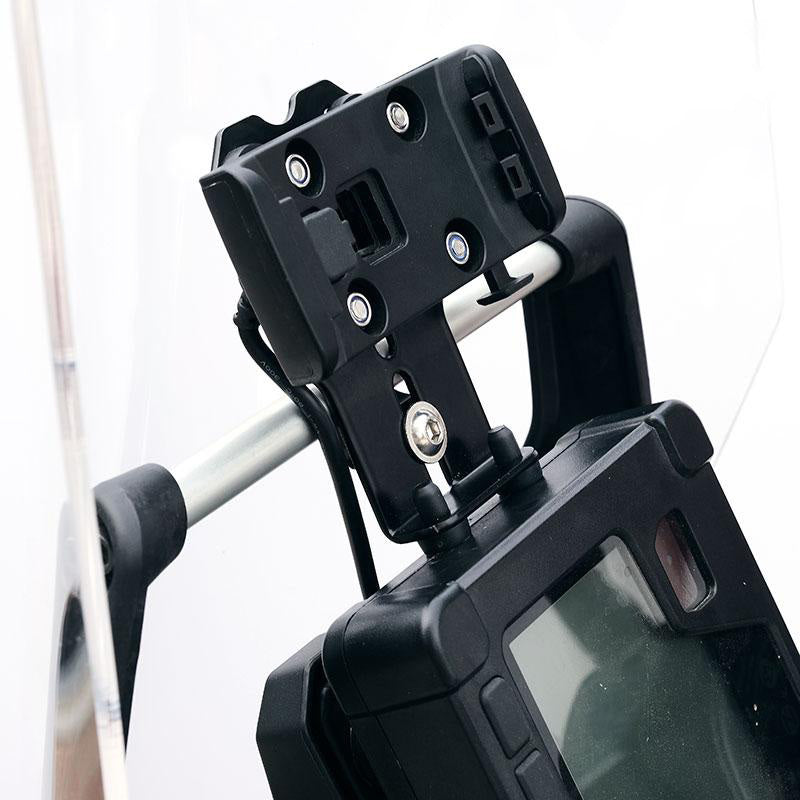

• AMPS standard with 30 × 38 mm mounting hole spacing for the navigation device

Materials and construction

• Sliding steel base, black epoxy powder-coated finish
• Two CNC-machined Ergal arms in different sizes
• Black arm for tubes from 12 to 18 mm
• Silver arm for tubes from 14 to 25 mm
• Two M6 stainless steel screws

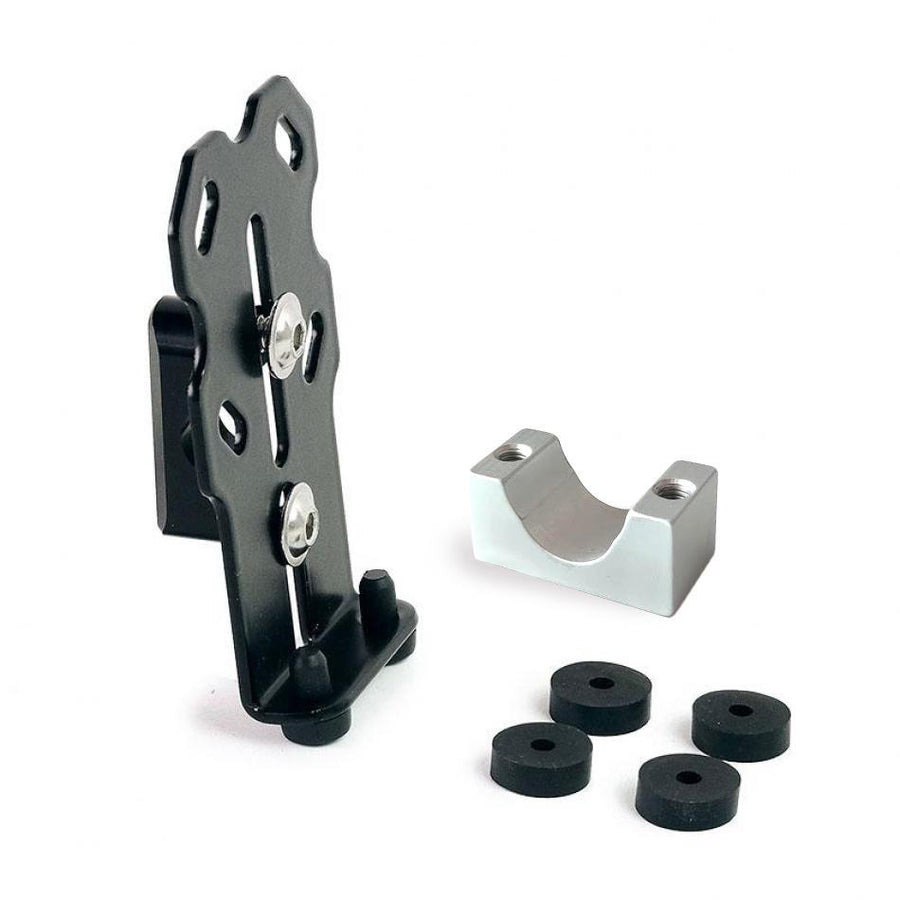

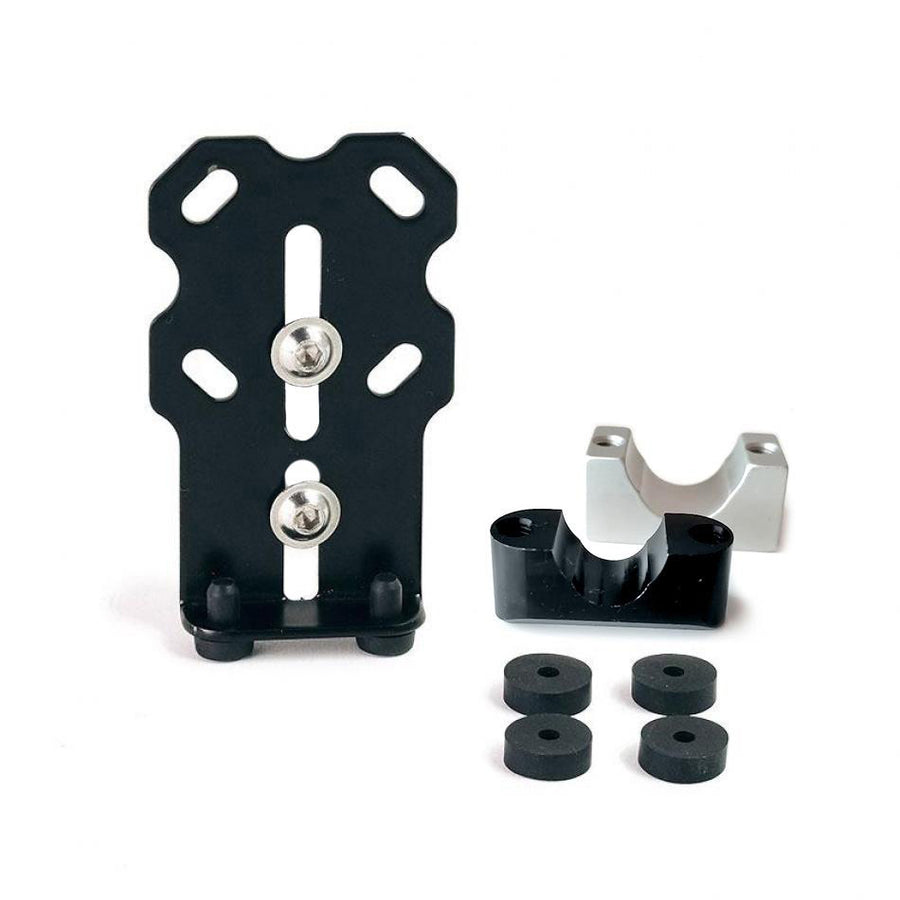

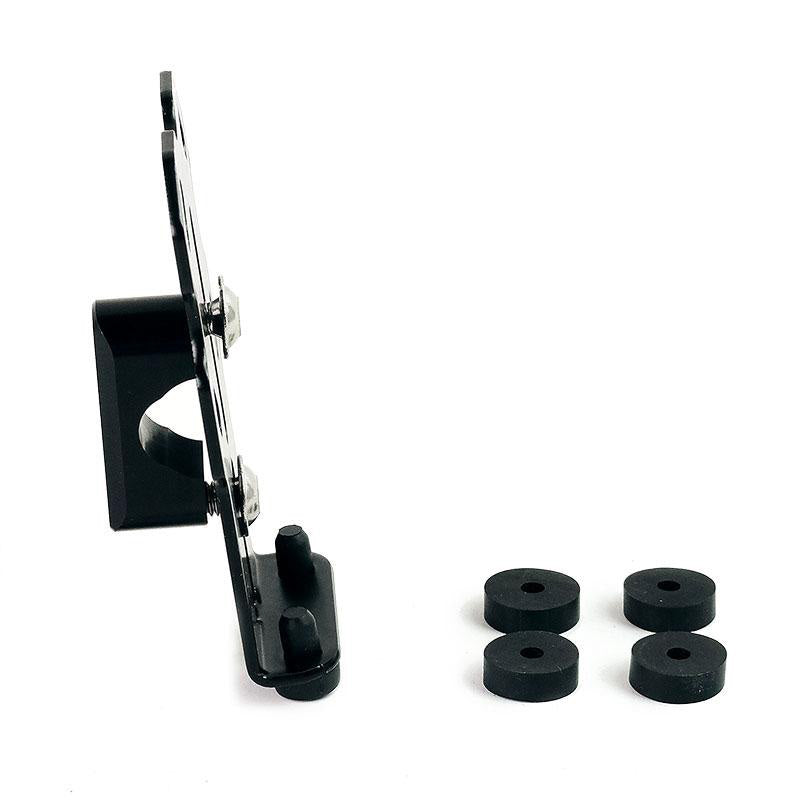

Scope of delivery

• 1 sliding steel base
• 2 M6 stainless steel screws
• 2 Ergal arms in different sizes
• 4 rubber spacers for attaching the GPS to the sliding base

Important installation note

The four mounting screws for the GPS are not included, as they vary depending on the device model and are normally supplied with the GPS.

Unit Garage continuously refines its products in detail. Images may therefore show an earlier version.
