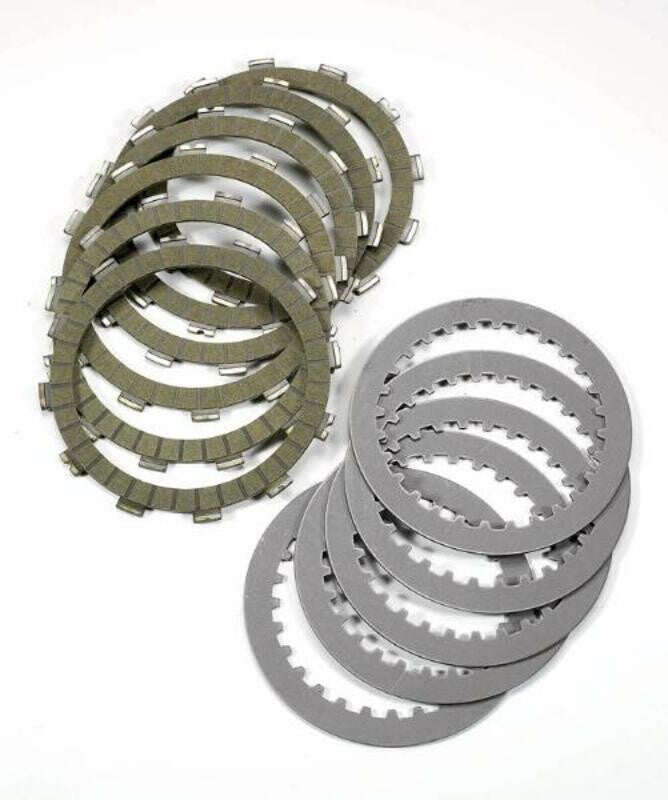

Beta Xtrainer 300 2 T [2018-2021] - Pro Race steel and friction disc clutch kit

NEWFREN Pro Race clutch kit for Beta Xtrainer 300

The NEWFREN Pro Race steel and friction disc clutch kit is designed for the 2018-2021 Beta Xtrainer 300 2T. It combines friction plates and steel disks into a coordinated clutch set for replacing the corresponding clutch components.

Friction material and construction

The friction plates use a material based on cellulose, resins and carbon as well as other components. This composition provides a high coefficient of friction and lower compressibility of the material. The special disc design supports the oil flow and thus the efficient operation of the clutch.

The combination of friction material and construction increases the stability of the pads. This means that the kit is designed to ensure that the clutch functions consistently even under demanding operating conditions. The Pro Race Line was developed in collaboration with successful teams from the Superbike, Moto 3 and MXGP world championships and is positioned as a high-quality racing product.

Technical data

• Friction plates: 8 pieces
• Thickness of friction plates: 2.8
• Number of edges: 12
• Outer diameter of friction plates: 132.5
• Inner diameter of friction plates: 111.5
• Steel discs: 7 pieces
• Steel disc thickness: 1.4
• Number of teeth: 12
• Outer diameter of steel discs: 134.4
• Inner diameter of lower teeth: 109.8 mm
• Inner diameter of upper teeth: 109

Vehicle assignment

The clutch kit fits the Beta Xtrainer 300 2 T, built between 2018 and 2021.
