BMW R 1150 R [2000-2006] - Digital Instrument with Bracket

Digital instrument replacing the original dashboard

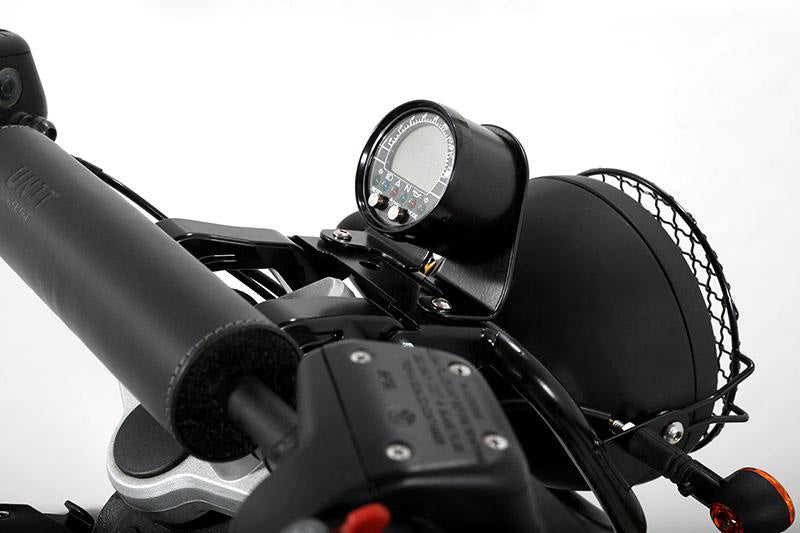

This universal instrument kit allows the original dashboard to be replaced. It includes the digital instrument, the mounting components intended for installation on the Unit Garage headlight frames, a new speed sensor and the corresponding wiring.

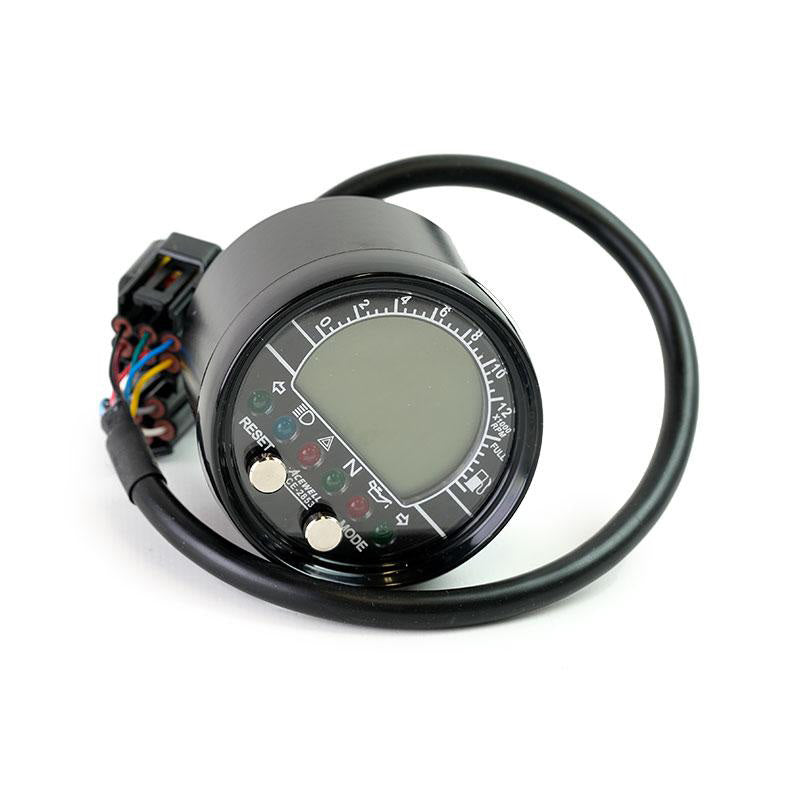

Display and functions

• Tachometer and speed display up to 300 km/h
• Trip and total mileage
• Time and maximum speed
• Trip and total riding time
• LCD display with two digital lines
• Analog bar graph for the tachometer
• Blue LED backlighting
• Storage of mileage and total distance
• Time display even when the device is switched off
• Speed display selectable in kilometers or miles
• Adjustable wheel circumference from 1 to 3999 mm for adaptation to different wheel types
• Indicators for direction of travel, lights, oil pressure, neutral position and engine faults
• Graphical fuel gauge

Housing and dimensions

• Black housing with black instrument bezel
• Diameter: 73 mm
• Height: 41 mm
• Waterproof housing
• Stainless steel installation kit and bracket
• Wiring with waterproof tin terminals

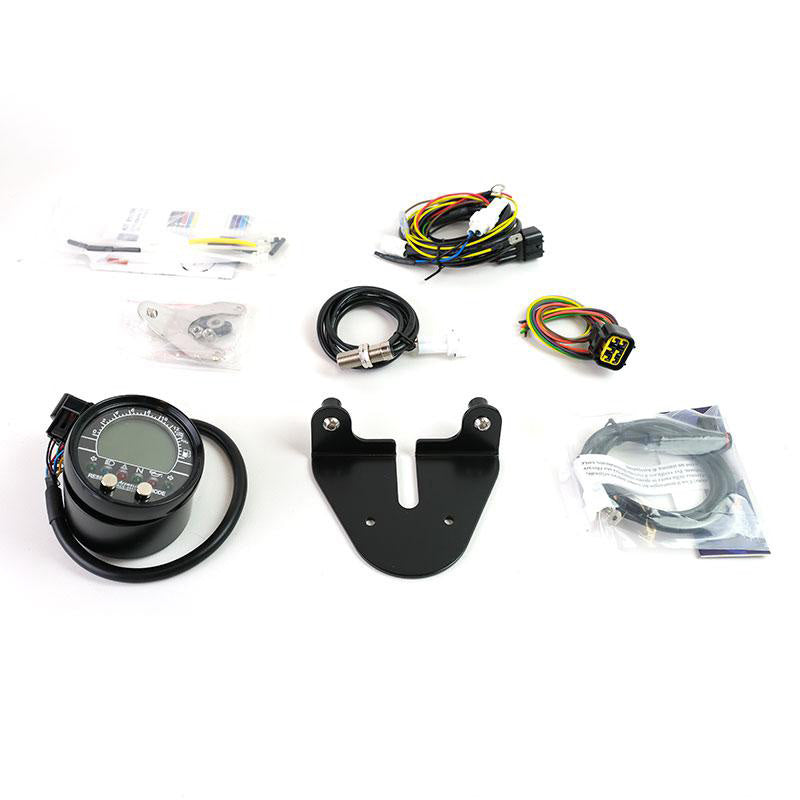

Scope of delivery

• Digital instrument with housing and black bezel
• Speed sensor
• Installation kit
• Stainless steel bracket for mounting on Unit Garage headlight frames
• Wiring with waterproof connectors
• Installation instructions and manual

Installation notes

The instrument has a universal design and was not developed specifically for a single motorcycle model. In addition to the instrument manufacturer's instructions, model-specific notes from Unit Garage are included to facilitate installation.

• Installation must be carried out by a qualified professional.
• Online installation support is not available for this product.
• An additional interface, available separately, is required for the reserve indicator on BMW R 850 R, R 1100 R and R 1150 R. It is not included in the scope of delivery.

Compatibility

• BMW R 850 GS and R 1100 GS
• BMW R 1150 GS
• BMW R 1150 GS Adventure
• BMW R 850 R and R 1100 R
• BMW R 1150 R

Due to continuous detail improvements, the images may show an earlier product version.
