BMW R45 R65 R80 R90 R100 [all years] - LTD-Style headlight H4, 7 inch, clear glass

Clear glass main headlights for classic BMW Boxer projects

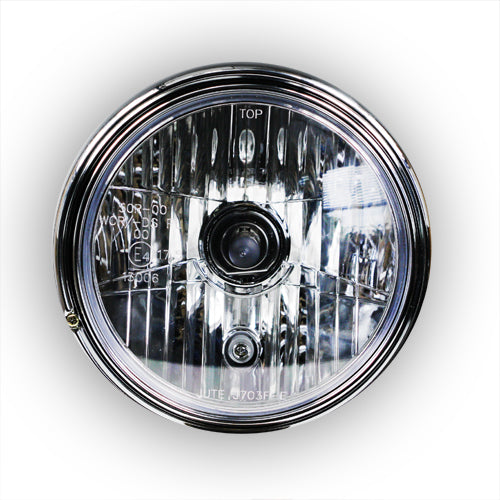

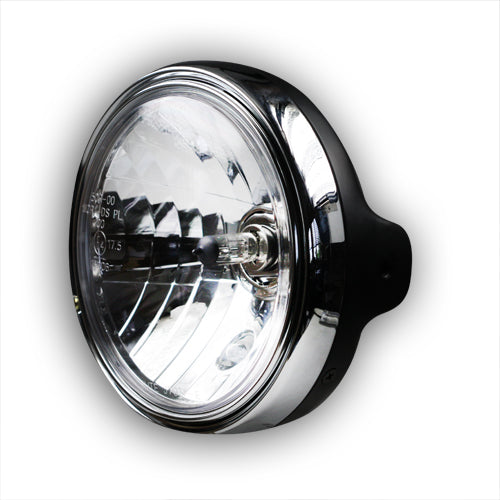

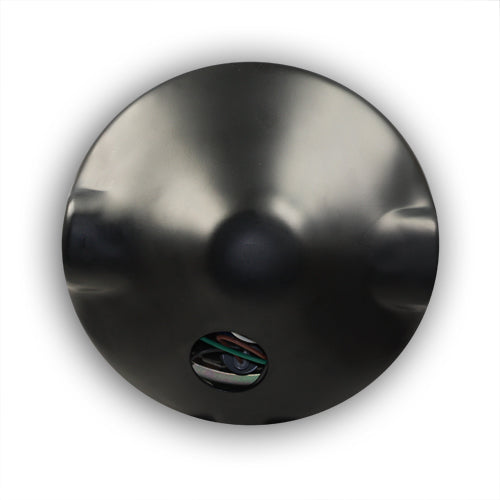

R45, R65, R80, R90 and R100 often serve as the basis for airhead, scrambler or café racer conversions. The universal 7-inch LTD-style headlight supports a reduced round front with black housing, clear lens and H4 prism reflector. Consistency with standard holders or connections is not guaranteed.

Product features at a glance

• H4, rated for 12V, 60/55W
• Parking light 4 W at 12 V
• M8 side mount, 200mm spacing

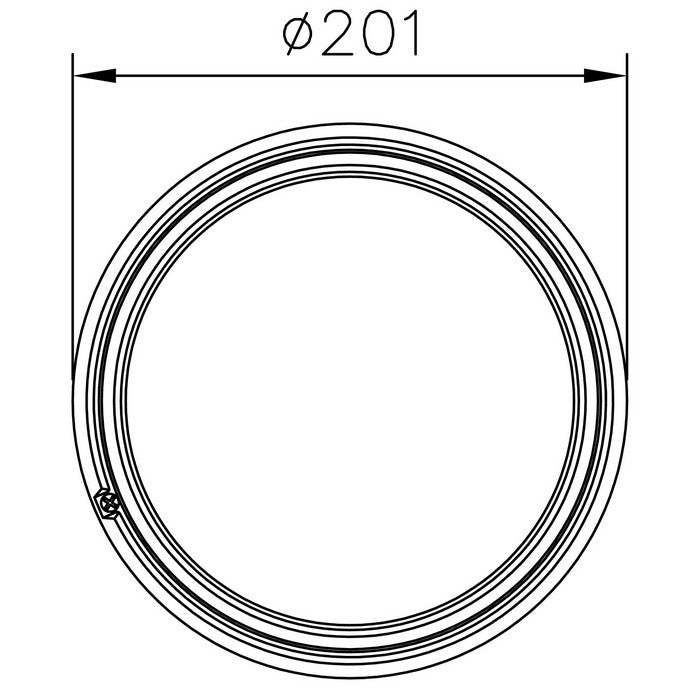

• Outer diameter 201mm
• Glass/reflector diameter 168 mm

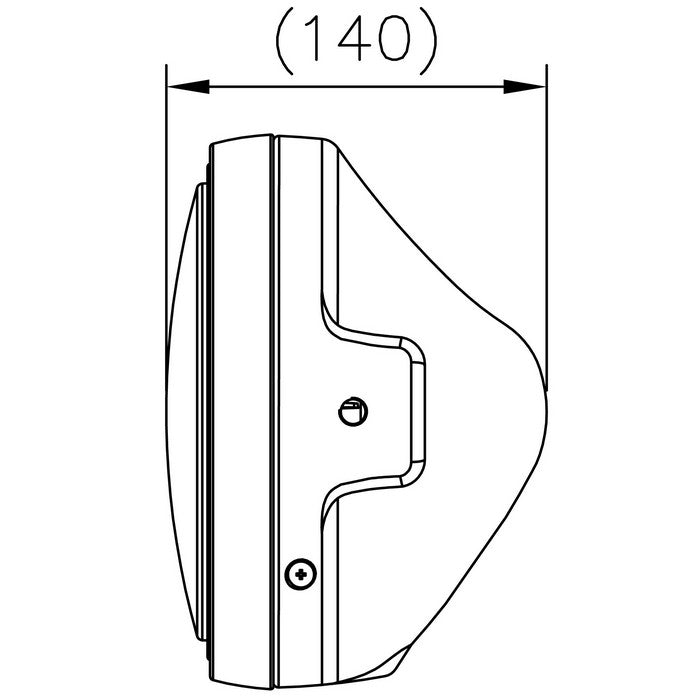

• Housing depth 138 mm
• E-approved

Record the airhead front exactly

Before choosing, the fork area and lamp holder should be measured. The lateral recording width and the space for the 138 mm deep housing are central criteria. Also take into account instruments, cables and possible changes due to a scrambler or café racer conversion that has already been carried out.

The connections and electrical design of the specific motorcycle must be compared with the H4 main light and parking light. When steering at full lock, ensure free movement without contact with the tank, forks, cables or lines.

Although the headlight is E-tested, the entire installation situation remains subject to testing. Secure attachment, correct alignment, installation position and permissibility must be clarified separately for the respective R45, R65, R80, R90 or R100. The model name alone is not a sufficient selection criterion.
