BMW S 1000 XR [2015-2018] - LED Auxiliary Light Kit with Brackets

LED auxiliary light kit for the BMW S 1000 XR

The model-specific LED auxiliary light kit is designed for the 2015-2018 BMW S 1000 XR. Two compact LED lights, matching steel brackets and a pre-wired electrical system form a fully coordinated solution for installation on the motorcycle.

LED light performance data

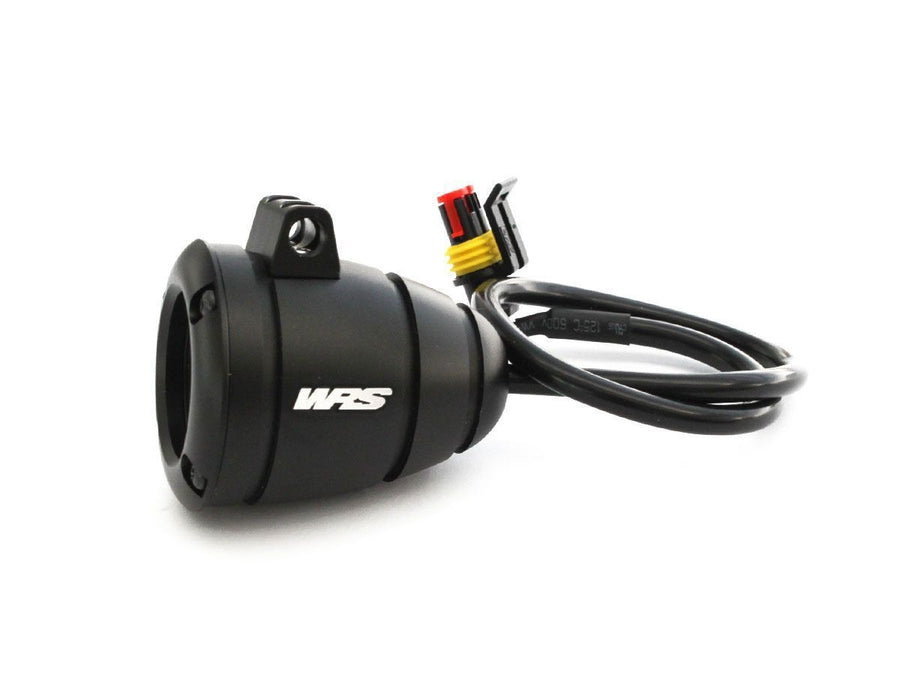

Each of the two auxiliary lights is rated at 10 W and produces 1.100 lumens. The colour temperature is 6.000 K, and the spot beam angle is 25 degrees. With an IP68 protection rating, the lights are protected against the ingress of dust and water.

• 2 LED auxiliary lights, each rated at 10 W
• 1.100 lumens each
• Colour temperature: 6.000 K
• Spot beam pattern with a 25-degree beam angle
• IP68 protection rating
• Black version BM308N

Material and package contents

The auxiliary lights are made from black anodised aluminium. The kit also includes two steel mounting brackets and the fully prepared electrical system.

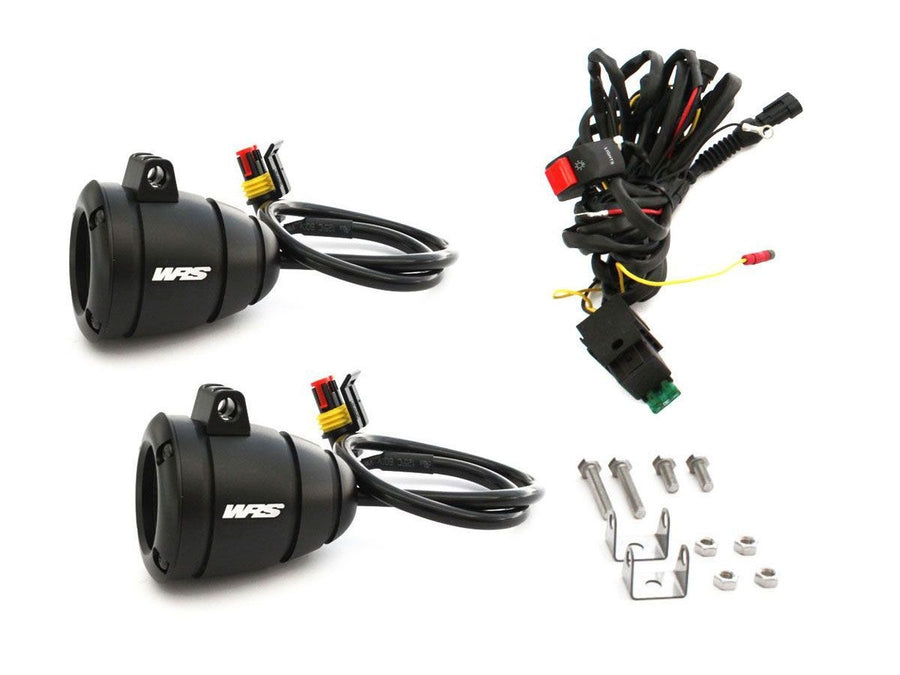

• 2 LED auxiliary lights
• 2 steel mounting brackets
• Complete electrical system with waterproof connectors, pre-wired
• Handlebar on/off switch, already connected to the wiring harness

Installation-ready

The wiring harness is ready for installation. No cables need to be cut or soldered. The two model-specific brackets allow the intended mounting on the BMW S 1000 XR.

Approval

No ABE is available for this item.
