GAS GAS EC 250 F [2024-2025] - Complete Top End Kit - Replica Forged Pistons

VERTEX Top End Kit for GAS GAS EC 250 F

The VERTEX complete kit with forged replica piston supports the overhaul of the upper engine area of the GAS GAS EC 250 F. It bundles the components intended for replacing pistons and seals and thereby helps to reduce the workload during engine overhaul.

Function and scope of delivery

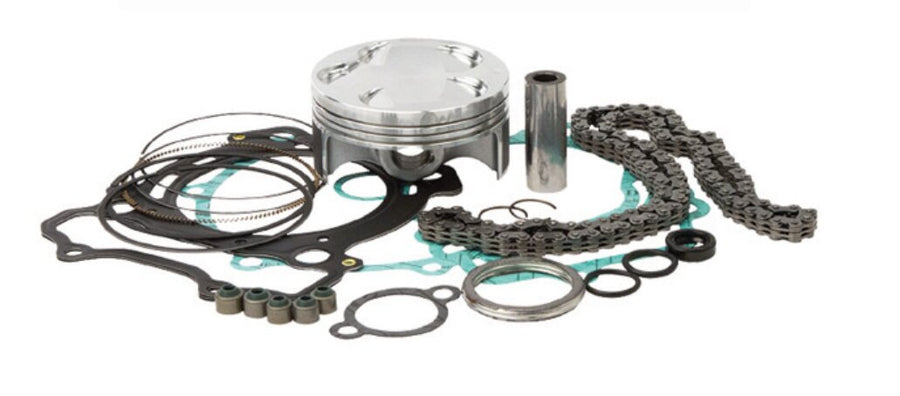

The Top End Kit is designed for the four-stroke engine and contains the relevant components for renewing the upper engine area:

• Aluminum piston
• Piston rings as a set
• Piston pin
• safety clips
• Top end gasket kit
• Timing chain as part of the four-stroke kit

Technical data

• Piston Type: Forged
• Piston compression: standard
• Diameter Ø: 80.96 mm
• Letter oversize: A
• Oversize: STD
• Bore diameter: 81.00 mm
• Displacement version: 4T

Vehicle assignment

The VERTEX Top End Kit fits the GAS GAS EC 250 F built in 2024-2025. The assignment applies to this vehicle within the specified year of construction.

With its standard piston compression and defined dimensions, the kit is suitable for selecting a suitable replacement part based on the existing engine data. The bundled components make it easier to obtain the parts intended for the top-end renewal.
