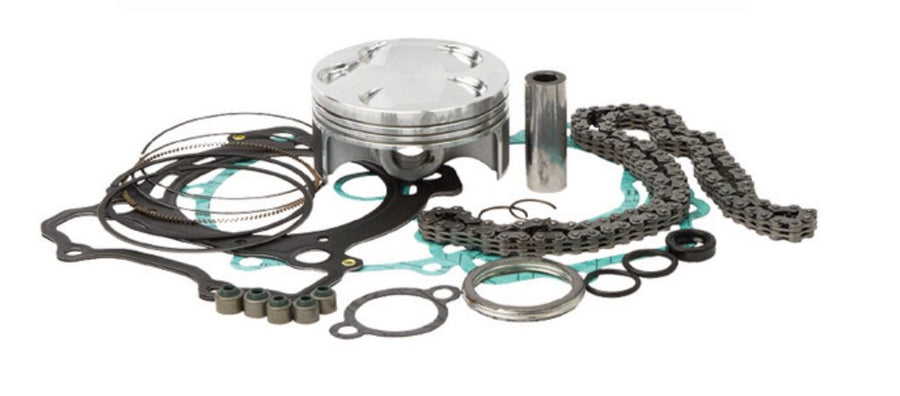

GAS GAS MC 250 F [2021-2023] - Complete Top End Kit - Replica Forged Pistons

VERTEX Complete Top End Kit for GAS GAS MC 250 F

The VERTEX Top End Kit with replica forged pistons is intended for overhauling the upper engine area of the GAS GAS MC 250 F from the 2021-2023 model year range. The complete set bundles the components relevant for the replacement and thereby supports a structured engine overhaul.

Components of the top end kit

• Piston
• Piston rings
• Piston pin
• safety clips
• Top end gasket kit
• Timing chain for four-stroke applications

The GAS GAS MC 250 F is a four-stroke application. The scope of delivery therefore also includes the timing chain. The set is designed for replacing pistons and seals in the upper engine area.

Technical data

• Brand: VERTEX
• Material: aluminum
• Piston Type: Forged
• Piston compression: standard
• Diameter Ø: 77.98 mm
• Letter oversize: C
• Oversize: +0.02
• Bore diameter: 78.00 mm
• Rings Quantity: Set
• Stroke: 4T

Vehicle assignment

The VERTEX complete top end kit - replica forged piston fits the GAS GAS MC 250 F, built between 2021 and 2023. When making the selection, particular attention should be paid to the specified piston diameter of 77.98 mm, the oversize letter C, the dimension +0.02 and the bore diameter of 78.00 mm.
