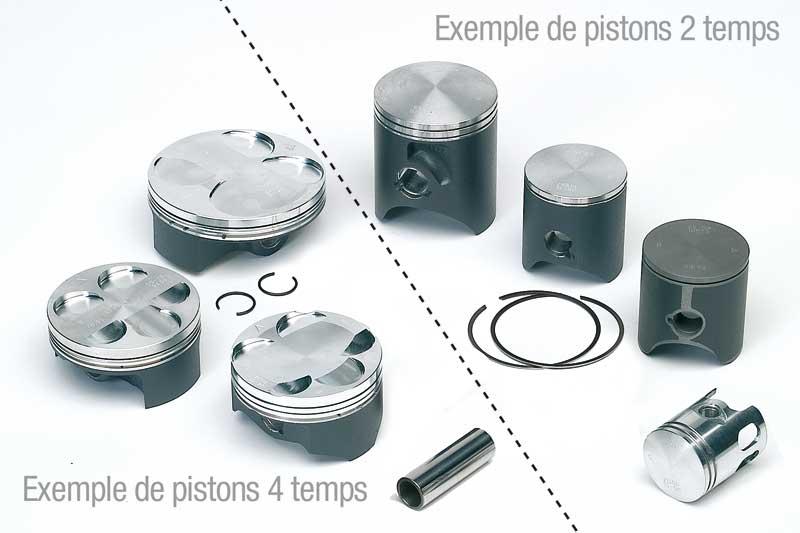

Honda CRF 450 R (PE 05) [2004-2008] - Replica forged pistons

VERTEX Replica forged pistons for Honda CRF 450 R

The VERTEX Replica forged piston is designed as a forged piston made of aluminum and is intended for the Honda CRF 450 R (PE 05) from the 2004-2008 model year range. Its standard piston compression and specified dimensions support targeted selection to suit the intended engine application.

Technical features

• Brand: VERTEX
• Piston Type: Forged
• Material: aluminum
• Piston compression: standard
• Diameter Ø: 95.97 mm
• Letter oversize: C
• Oversize: +0.02
• Bore diameter: 96.00 mm
• Rings Quantity: Set
• Stroke: 4T

Vehicle assignment

The forged piston is assigned to the Honda CRF 450 R (PE 05) with the complete model year range 2004-2008. The specified diameter of 95.97 mm, the bore diameter of 96.00 mm as well as the marking “C” and oversize +0.02 are particularly relevant for the selection.

Selection guide

Before ordering, compare the existing engine version and the required piston dimensions with the technical data listed. The piston is assigned to the “Piston” category in the “Top engine” and “Engine” section. The design with standard piston compression and Rings Quantity “Set” makes it easier to clearly assign them within the technical specification.
