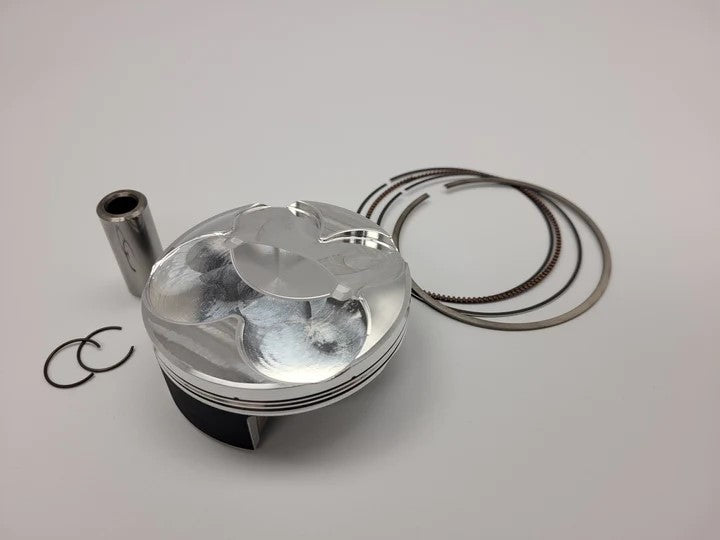

HUSQVARNA FE 350 [2023-2027] - WÖSSNER forged pistons

WÖSSNER forged pistons for the HUSQVARNA FE 350

The WÖSSNER forged piston is designed for the HUSQVARNA FE 350 built between 2023 and 2027. As a component for a 4T engine, it combines clearly defined dimensions with standard piston compression and a compression ratio of 14.6:1.

Technical features

• Material: aluminum
• Piston diameter: 87.97 mm
• Bore size: 88.02
• Letter oversize: C
• Oversize: +0.02
• Piston compression: standard
• Compression ratio: 14.6:1
• Piston rings: set
• Ring designation: TPR88.00
• Engine type: 4T

Suitable for

This forged piston is assigned to the HUSQVARNA FE 350 in the full year range 2023-2027. The vehicle assignment supports the selection of the appropriate piston based on model and year of manufacture.

Selection according to size and design

With a diameter of 87.97 mm, the bore size 88.02 and the oversize +0.02, the piston is suitable for a targeted selection according to the specified engine dimensions. The code letter C supplements the dimension for the assignment of the design. The piston ring set with the designation TPR88.00 is given as the technical specification of this version.

Before making a selection, the model, year of manufacture and the dimensions mentioned should be compared with the intended engine configuration.
