Kawasaki KLX 650 R (KLX 650 A) [1993-1995] - WÖSSNER forged pistons

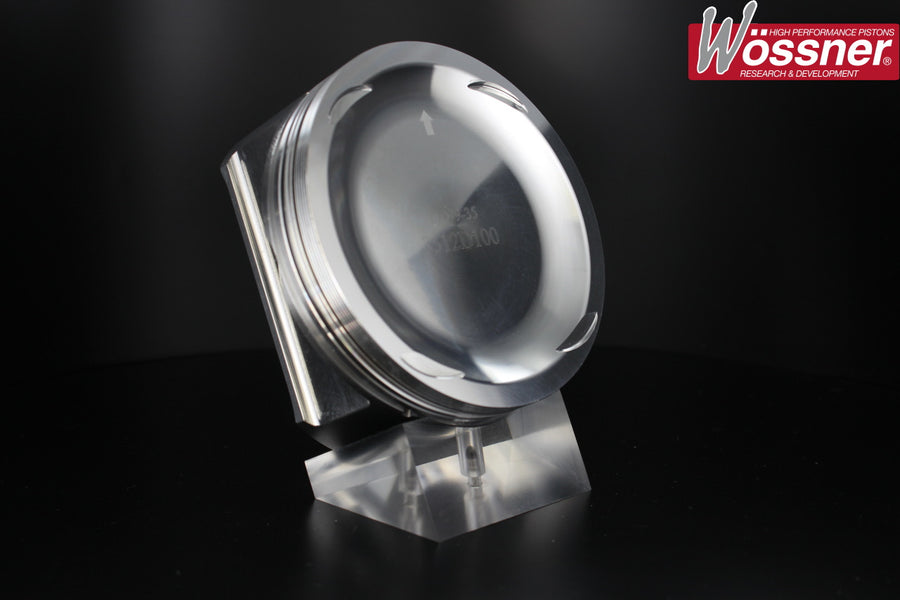

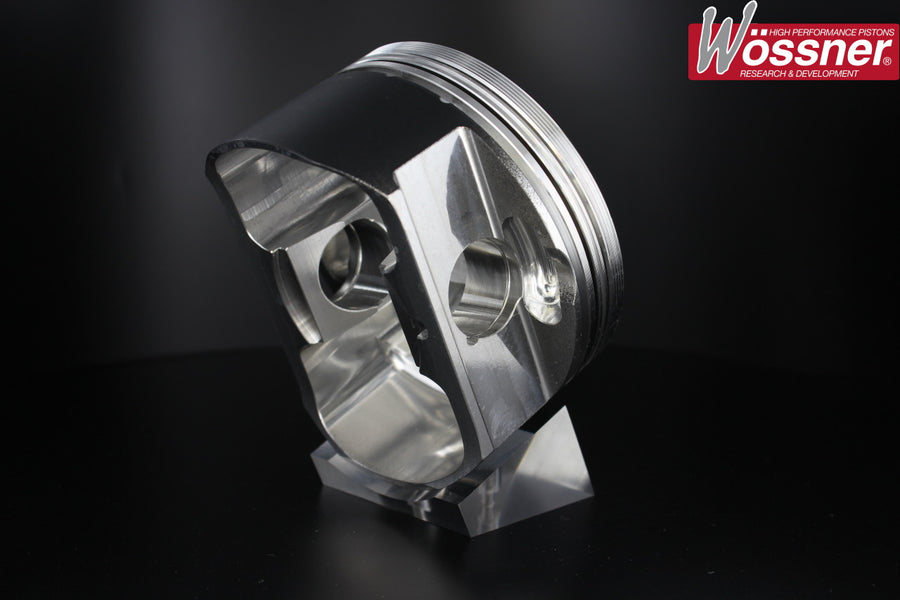

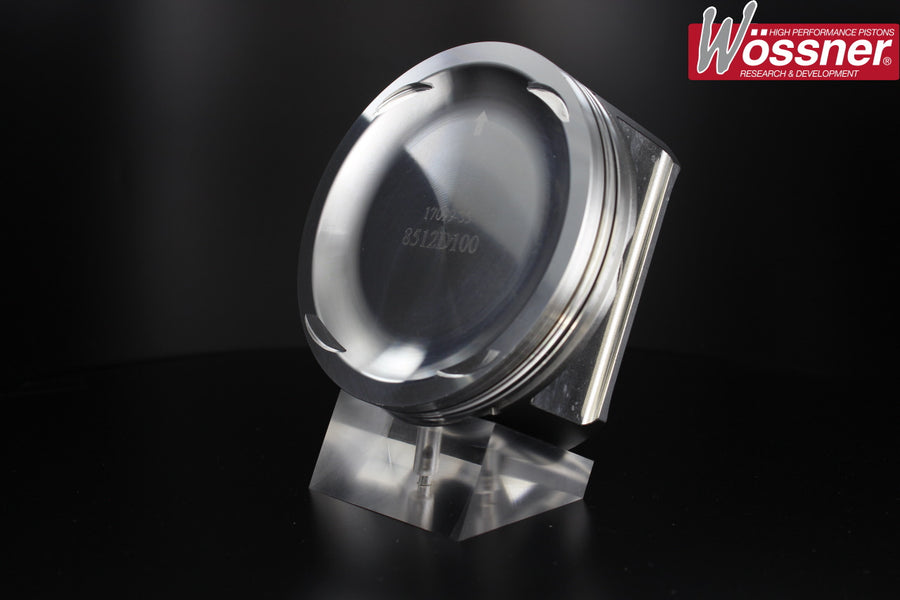

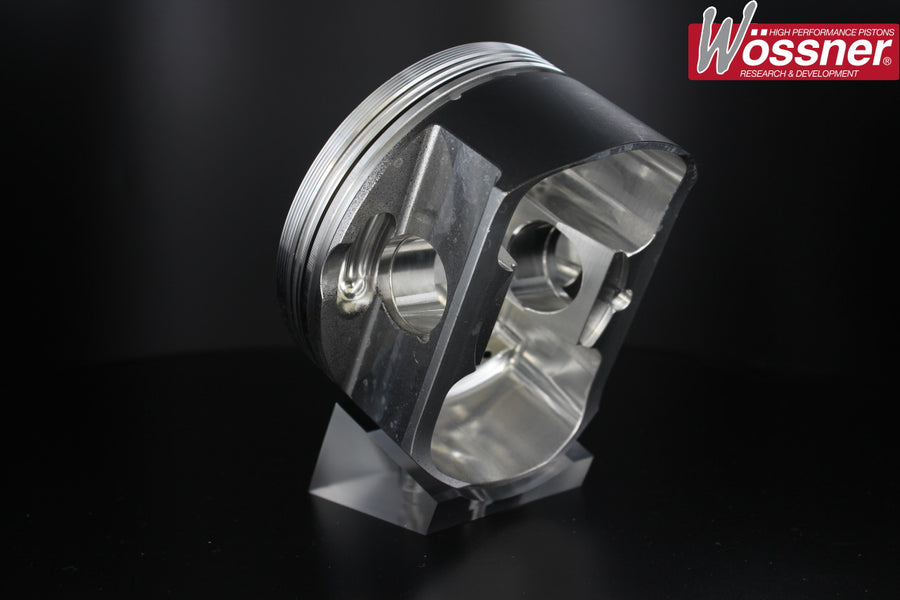

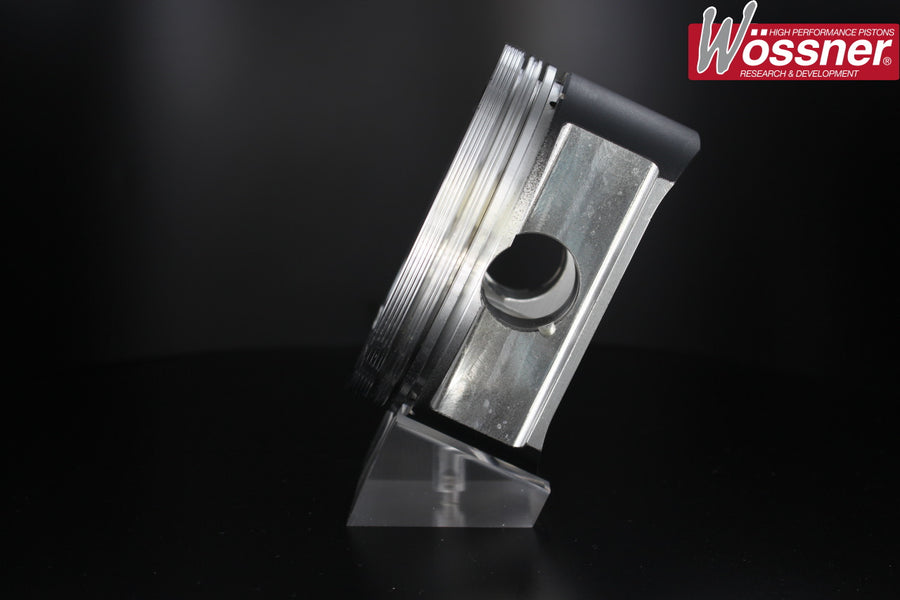

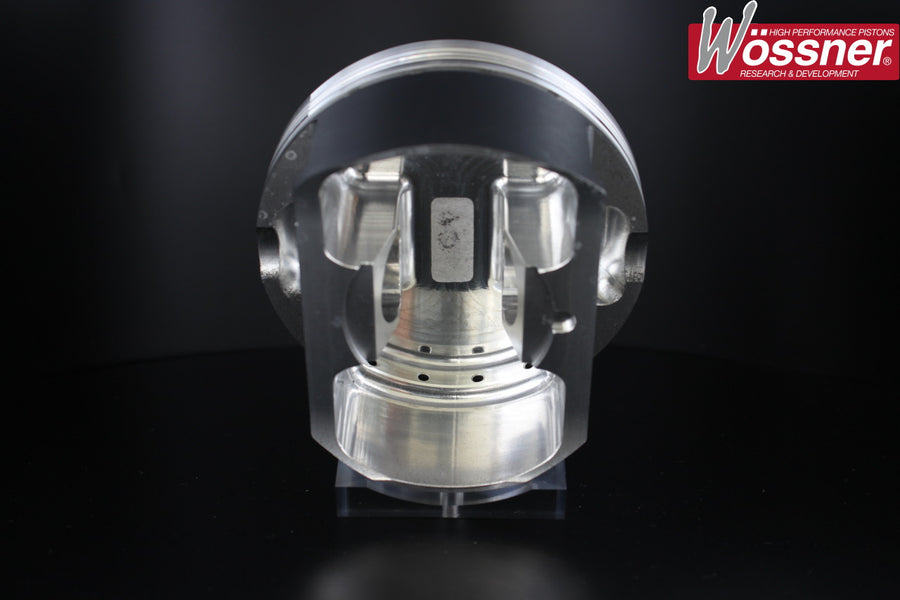

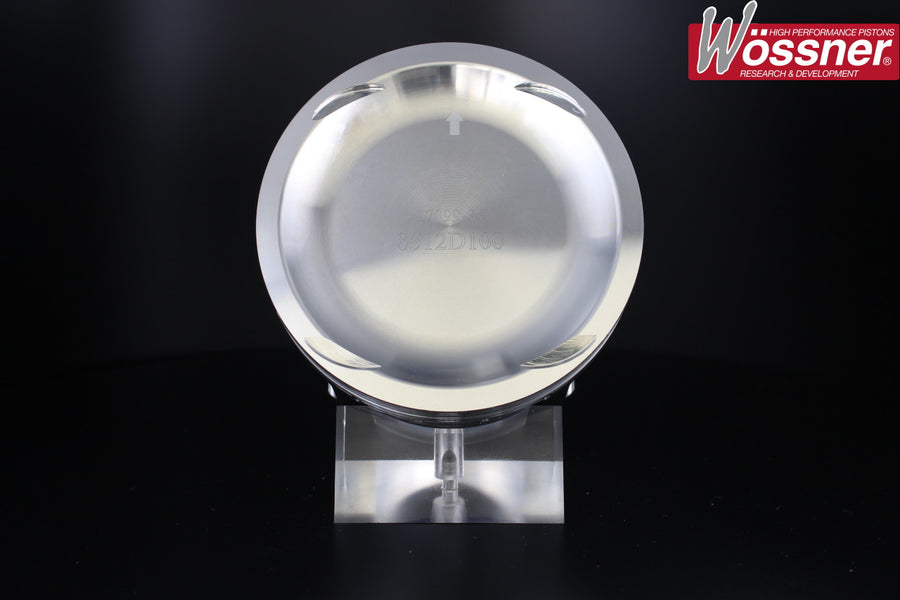

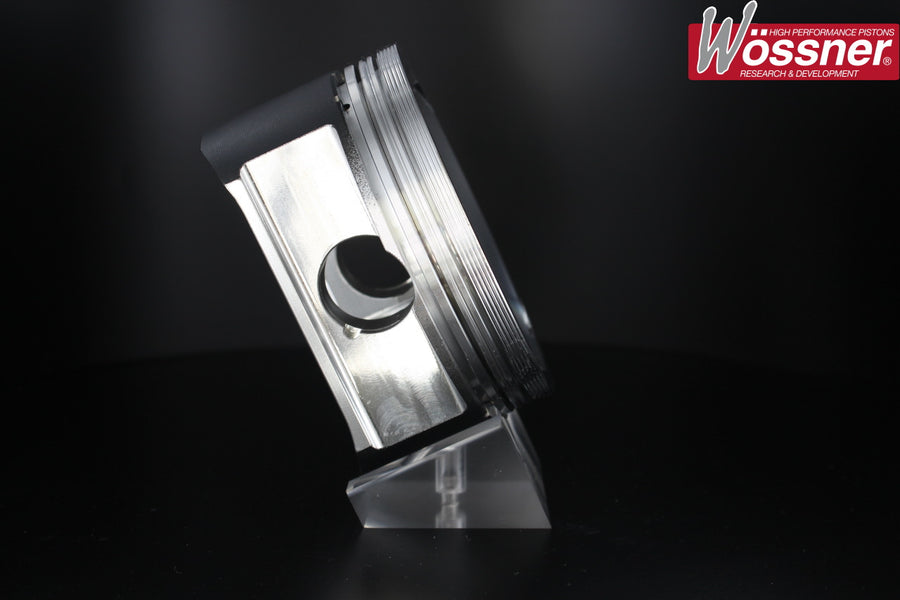

WÖSSNER forged pistons for Kawasaki KLX 650 R

The WÖSSNER forged piston is designed as an engine component for the Kawasaki KLX 650 R (KLX 650 A) from the entire 1993-1995 model year range. The design combines a forged piston type with aluminum and standard piston compression.

Technical data

• Material: aluminum
• Piston Type: Forged
• Piston compression: standard
• Diameter Ø: 100.94 mm
• Letter oversize: 100
• Oversize: +1.00
• Bore diameter: 101.00 mm
• Compression ratio: 9.5:1
• Rings Quantity: 3
• Stroke: 4T

Vehicle assignment

The forged piston is assigned to the Kawasaki KLX 650 R (KLX 650 A) for the years 1993-1995. The selection should be based on the stated bore diameter of 101.00 mm and the stated oversize +1.00.

Execution

With a diameter of 100.94 mm, a bore diameter of 101.00 mm and a compression ratio of 9.5:1, the relevant technical parameters are clearly defined. The piston ring specification includes 3 rings. The piston is intended for the specified 4T version.
