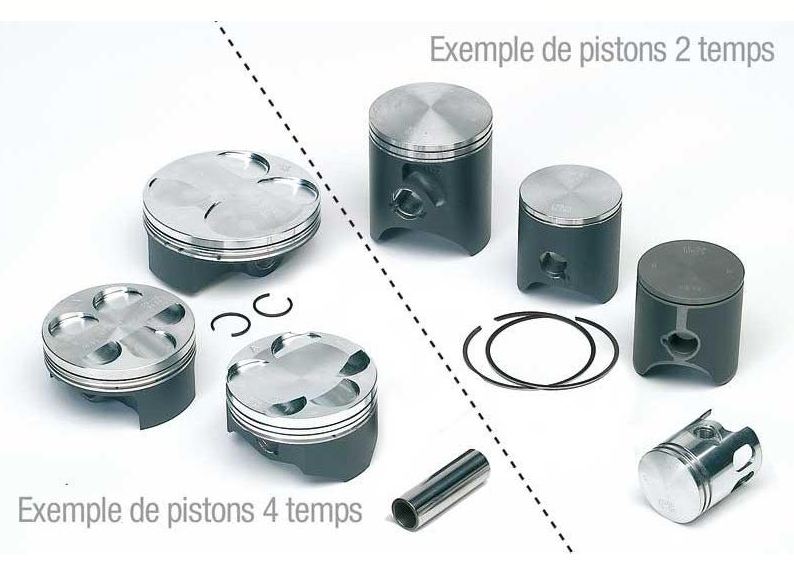

Kawasaki KX 250 F (KX 250 Z) [2015-2016] - Replica forged pistons

VERTEX Replica forged pistons for Kawasaki KX 250 F (KX 250 Z)

The VERTEX Replica forged piston is designed for the Kawasaki KX 250 F (KX 250 Z) from 2015 to 2016. As a forged aluminum version, it is suitable for use in the 4T engine and combines a precisely manufactured piston shape with standard compression.

Technical execution

• Piston type: forged
• Material: aluminum
• Piston compression: standard
• Diameter Ø: 76.96 mm
• Letter oversize: B
• Oversize: +0.01
• Bore diameter: 77.00 mm
• Piston rings: set
• Stroke: 4T

Suitable for

The piston is assigned to the Kawasaki KX 250 F (KX 250 Z) in the full 2015-2016 model year range. The vehicle name and year of manufacture serve as a selection aid for assigning the appropriate engine component replacement part.

Manufacturing features

VERTEX specializes in engine components for off-road machines and produces precision pistons using the forging process. The version with 76.96 mm piston diameter, B oversize and +0.01 oversize supports targeted selection based on the specified engine dimensions. Before ordering, the technical dimensions should be compared with the existing engine.
