Kawasaki KX 250 F (KX 250 Z) [2015-2016] - Replica forged pistons

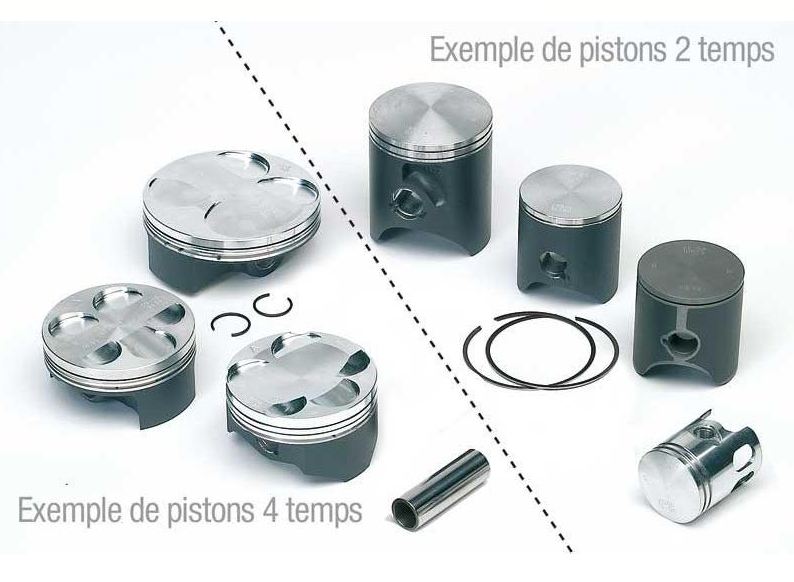

VERTEX Replica forged pistons for Kawasaki KX 250 F

The VERTEX Replica forged piston is designed as a forged aluminum component for the 4T engine of the Kawasaki KX 250 F (KX 250 Z). Its dimensions and standard compression design support targeted selection when renewing or redesigning the piston.

Function and execution

The piston is made of aluminum and has a diameter of 76.97 mm. The forged design and the VERTEX manufacturing process are aimed at use in engine components for off-road machines. The version is marked with the letter oversize C and an oversize of +0.02.

Technical data

• Brand: VERTEX
• Piston Type: Forged
• Material: aluminum
• Piston compression: standard
• Diameter Ø: 76.97 mm
• Letter oversize: C
• Oversize: +0.02
• Bore diameter: 77.00 mm
• Rings Quantity: Set
• Stroke: 4T

Vehicle assignment

Suitable for the Kawasaki KX 250 F (KX 250 Z), built between 2015 and 2016.

Selection note

The specified diameter of 76.97 mm, the bore diameter of 77.00 mm and the marking C and +0.02 are particularly important for a suitable selection.
