Kawasaki Z 650 750 Z900RS [all years] - LTD-Style headlight H4, 7 inch, clear glass

7 inch clear glass for Kawasaki Z roadster projects

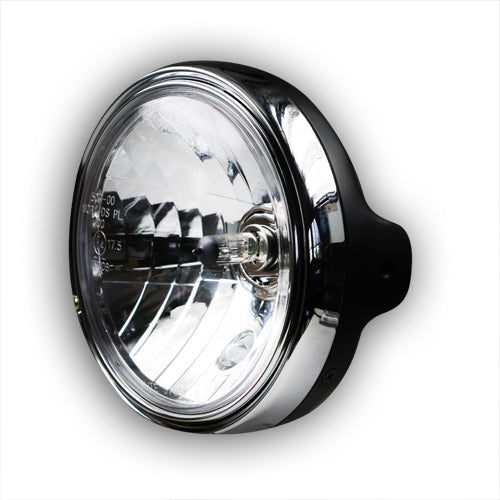

From the Z 650 and Z 750 to the Z900RS, the context ranges from individual naked bikes to retro roadsters. The universal LTD-style main headlight has a round 7-inch shape, a black housing and clear glass. Its H4 prism reflector provides the technical basis; This does not involve a vehicle-related assembly promise.

The known key values

• H4 main light: 12V 60/55W
• Parking light 4 W for 12 V
• M8 side fastening at 200 mm distance

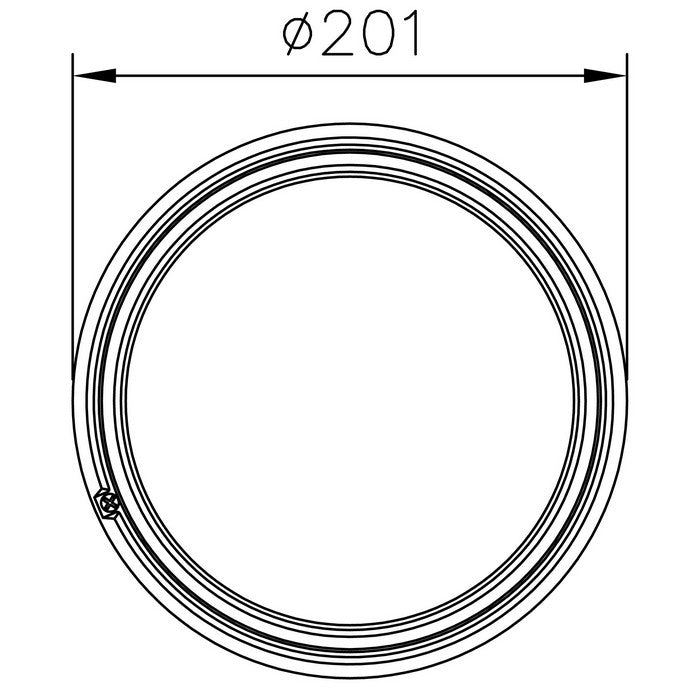

• 201mm outer diameter
• 168mm glass/reflector diameter

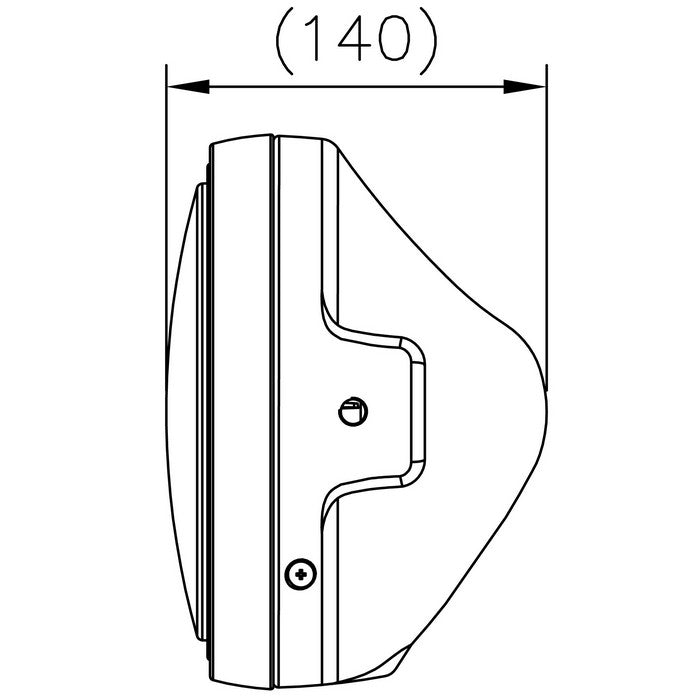

• 138mm deep black case
• E-approved

Selection based on motorcycle and modification status

First check which holders are available or will be provided for the respective Z. The side M8 mounts and their distance must fit the design geometrically. It must also be clarified whether there is enough space for cables and connections in front of instruments and behind the housing.

The vehicle electrical system must be compared with the specified performance values ​​based on the actual connections. When the steering wheel is at full lock, check the fork, tank, instruments, cables and cables for possible contact. This is especially true for fronts that have already been changed.

The headlight is E-tested. The permissibility of the entire assembly still depends on the position, orientation, fastening and the specific motorcycle. These aspects must be clarified separately for the Z 650, Z 750 or Z900RS.
