KTM 125 EXC [2001-2017] - Race Evolution cast pistons

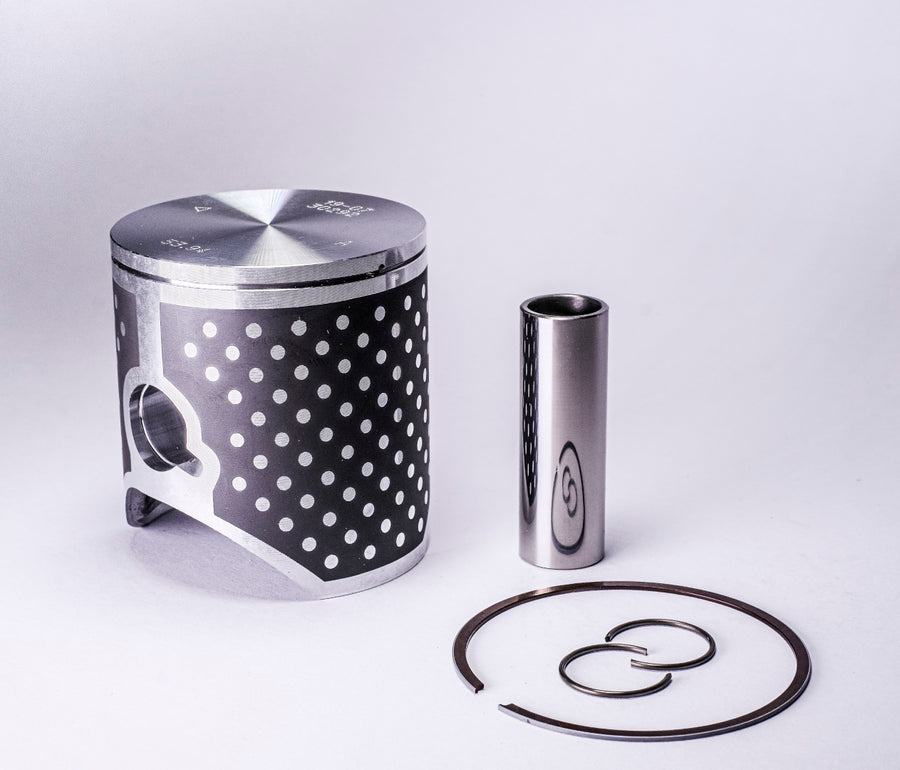

VERTEX Race Evolution cast piston for KTM 125 EXC

The VERTEX Race Evolution cast piston is designed for the KTM 125 EXC from the 2001-2017 model year range. As a 2T piston for off-road and racing use, it combines precise design with technical features that are tailored to ensure smooth running between piston and cylinder.

Function and execution

The piston is made of aluminum and is designed as a cast version. An exclusive MoS2 coating supports low-friction, even movement in the cylinder. The design with specific pockets is designed to promote smooth running between the piston and cylinder. Nitrided steel rings complement the racing concept of the piston.

The Race Evolution cast piston was developed for racing applications in 2-stroke off-road engines. VERTEX describes the Race Evolution pistons as a solution selected by Factory MX teams.

Technical data

• Material: aluminum
• Piston Type: Cast
• Piston compression: standard
• Diameter Ø: 53.95 mm
• Letter oversize: B
• Oversize: +0.01
• Bore diameter: 54.00 mm
• Rings Quantity: 1
• Stroke: 2T

Vehicle assignment

Suitable for KTM 125 EXC, built between 2001 and 2017. Before making your selection, please compare the specified dimensions and design with the existing motor.
