KTM 125 EXC Factory Edition [2010-2015] - Race/Special cast pistons

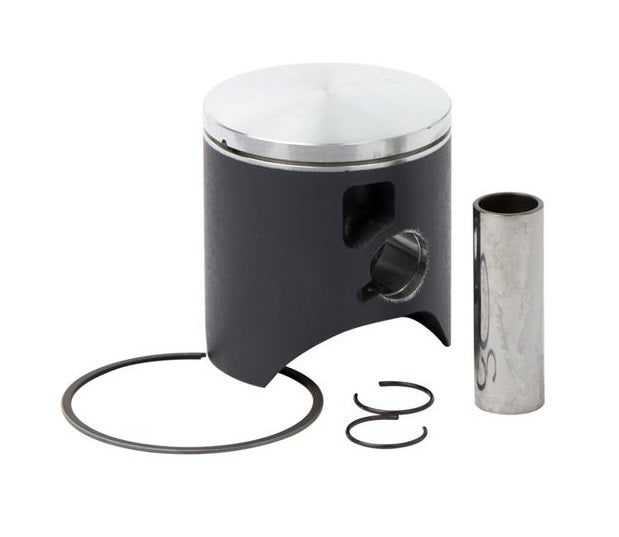

VERTEX Race/Special cast piston for KTM 125 EXC Factory Edition

The VERTEX Race/Special cast piston is designed as a single segment piston for the KTM 125 EXC Factory Edition in the entire 2010-2015 model year range. The design supports targeted selection based on the specified piston and bore dimensions.

Design and technical data

• Piston Type: Cast
• Material: aluminum
• Piston compression: standard
• Diameter Ø: 53.97 mm
• Letter oversize: D
• Oversize: +0.03
• Bore diameter: 54.00 mm
• Rings Quantity: 1
• Stroke: 2T

The combination of letter oversize D, oversize +0.03 and a bore diameter of 54.00 mm makes it easier to compare with the relevant engine data. The piston is standard compression and has a cast aluminum construction.

Vehicle assignment

The piston is assigned for:

• KTM 125 EXC Factory Edition, built 2010-2015

Selection note

Before ordering, the specified dimensions and the D marking should be compared with the existing motor data. The piston diameter of 53.97 mm, the bore diameter of 54.00 mm and the design as a single segment piston are particularly relevant for the selection.
