KTM 350 EXC F [2023-2027] - WÖSSNER forged pistons

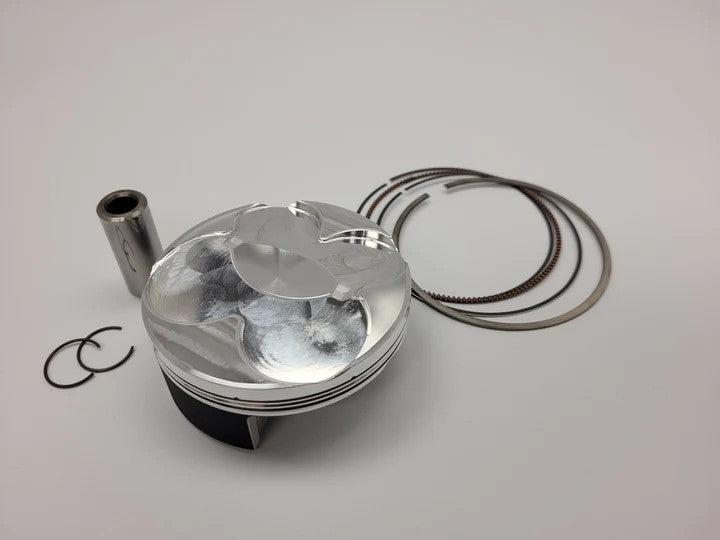

WÖSSNER forged pistons for KTM 350 EXC F

The WÖSSNER forged piston is assigned to the KTM 350 EXC F in the full year range from 2023 to 2027. The version is intended for engines with 4T configuration and has standard piston compression.

Technical features

• Material: aluminum
• Diameter Ø: 87.97 mm
• Bore size: 88.02
• Piston size: 87.97
• Compression ratio: 14.6:1
• Letter oversize: C
• Oversize: +0.02
• Piston ring set: set

Execution and assignment

The piston is designed as a WÖSSNER forged piston and uses the specified aluminum version. The combination of diameter Ø 87.97 mm, bore size 88.02 and oversize +0.02 supports targeted selection based on the existing motor data. The compression ratio is 14.6:1.

The forged piston is only suitable for the KTM 350 EXC F built in 2023, 2024, 2025, 2026 and 2027. Before making a selection, the listed dimensions, the C marking and the intended 4T version should be compared with the requirements of the respective engine.
