KTM 450 EXC F [2024] - Complete Top End Kit - Forged Pistons

VERTEX Top End Kit with forged piston for KTM 450 EXC F

The VERTEX complete upper engine kit supports the overhaul of the engine of the KTM 450 EXC F. It combines a forged aluminum piston with the associated components for replacing the piston and seals in the upper engine area. This means that the essential parts for this maintenance work are combined in a coordinated kit.

Design and technical data

• Piston material: aluminum
• Piston Type: Forged
• Piston compression: standard
• Diameter Ø: 94.97 mm
• Letter oversize: C
• Oversize: +0.02
• Bore diameter: 95.00 mm
• Compression ratio: 11.8:1
• Piston rings: set
• Stroke: 4T

Scope of delivery

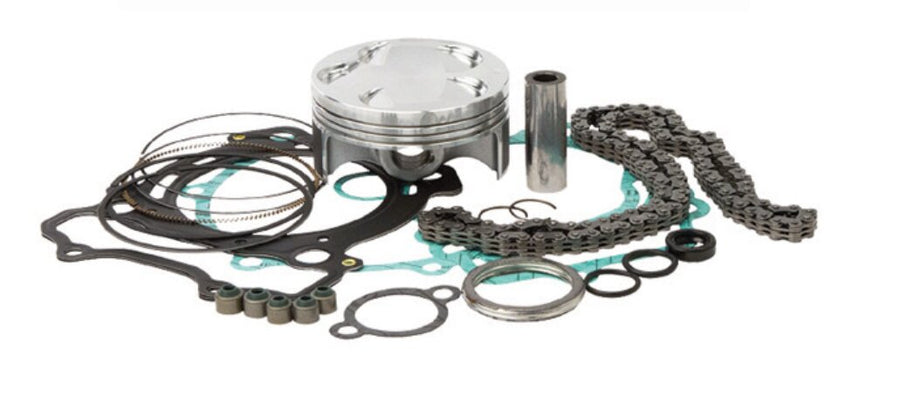

The Top End Kit includes the piston, piston rings, piston pins, locking clips and a top end gasket set. As a four-stroke kit, it also includes a timing chain. The scope of delivery is therefore aimed at renewing the upper engine area, including the wear and sealing components provided.

Vehicle assignment

Suitable for the KTM 450 EXC F, built in 2024. The assignment refers to this model and this entire year range.

Selection note

When making your selection, particular consideration should be given to version C, the oversize dimension +0.02 and the bore diameter of 95.00 mm. The compression ratio is 11.8:1.
