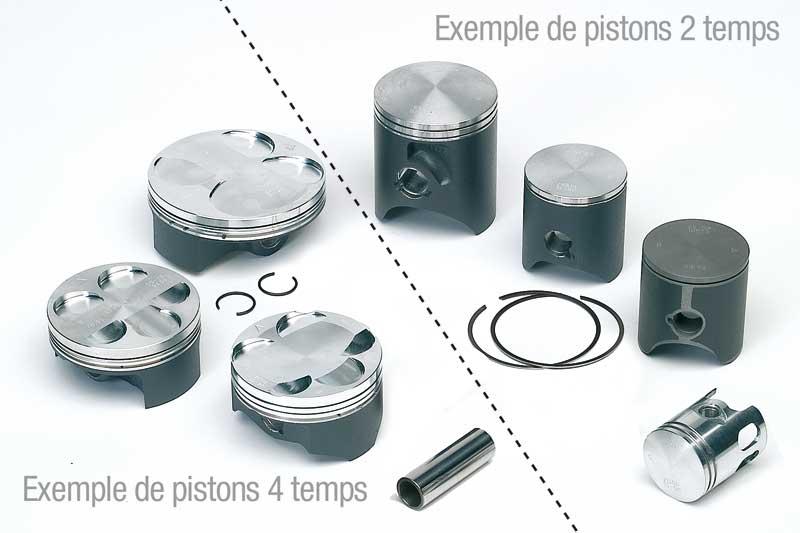

KTM 450 SXS-F [2007-2008] - Replica forged pistons

VERTEX Replica forged pistons for KTM 450 SXS-F 2007-2008

The VERTEX Replica forged piston is tailored to the KTM 450 SXS-F from the full 2007-2008 model year range. As a forged aluminum piston, it offers a precisely defined technical design for use in the upper engine range.

Technical execution

• Piston Type: Forged
• Material: aluminum
• Piston compression: standard
• Diameter Ø: 96.95 mm
• Letter oversize: C
• Oversize: +0.02
• Bore diameter: 97.00 mm
• Compression ratio: 12.5:1
• Piston ring quantity: set
• Stroke: 4T

Selection and vehicle assignment

The technical dimensions make targeted selection easier when revising the engine. Particular attention should be paid to the diameter of 96.95 mm, the bore diameter of 97.00 mm and the oversize marking with the letter C and the value +0.02.

The piston is assigned to the KTM 450 SXS-F for the years 2007-2008. The standard piston compression and compression ratio of 12.5:1 support a clear match to the specified engine data.

Factual product data

With the replica forged piston design, the aluminum material and the included ring set, the essential features for the technical classification are clearly summarized. Before making a selection, the vehicle model, year of manufacture and the specified piston and bore dimensions should be compared with the existing engine.
