BMW R 1200 GS ADV LC [2014-2018] - Universal GPS Mount

Flexible and secure mounting for GPS navigation devices

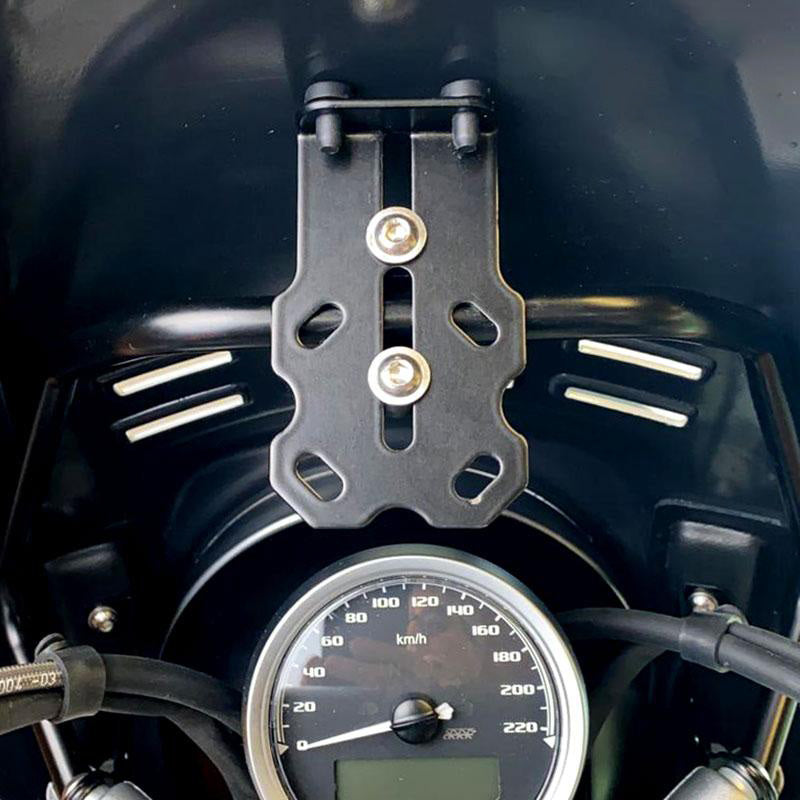

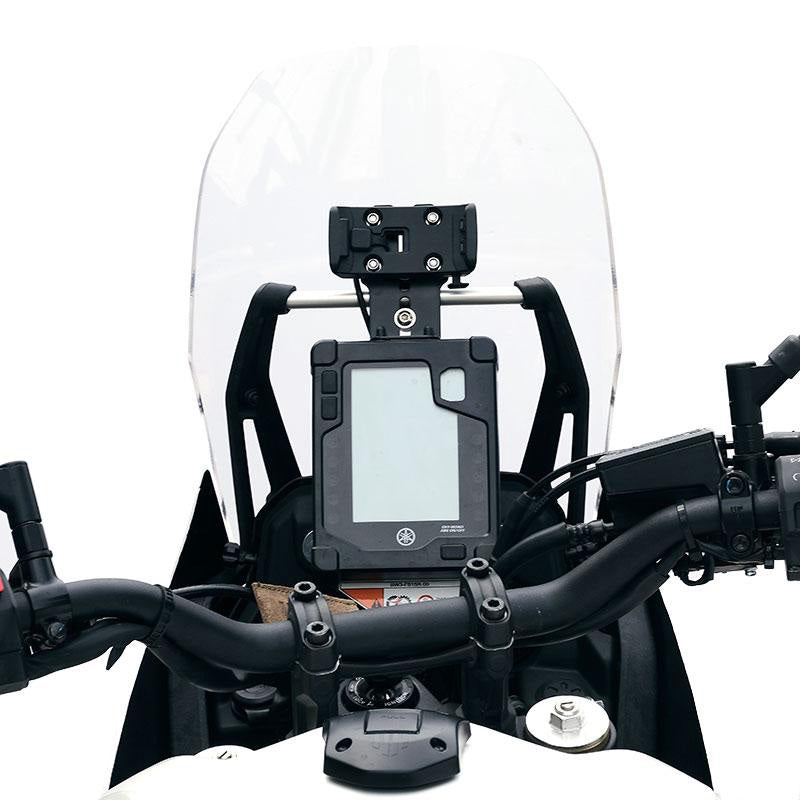

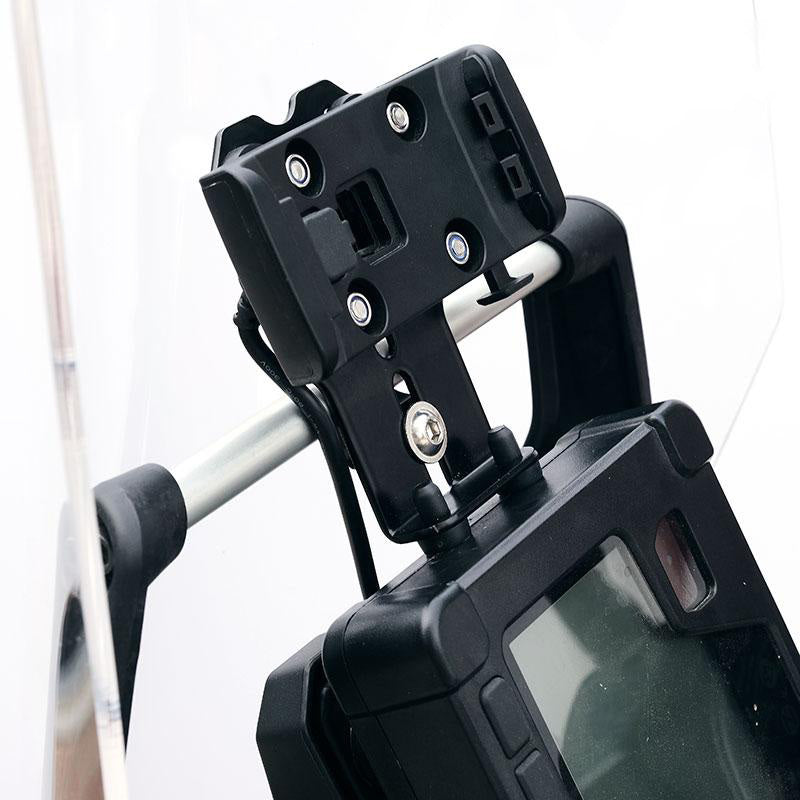

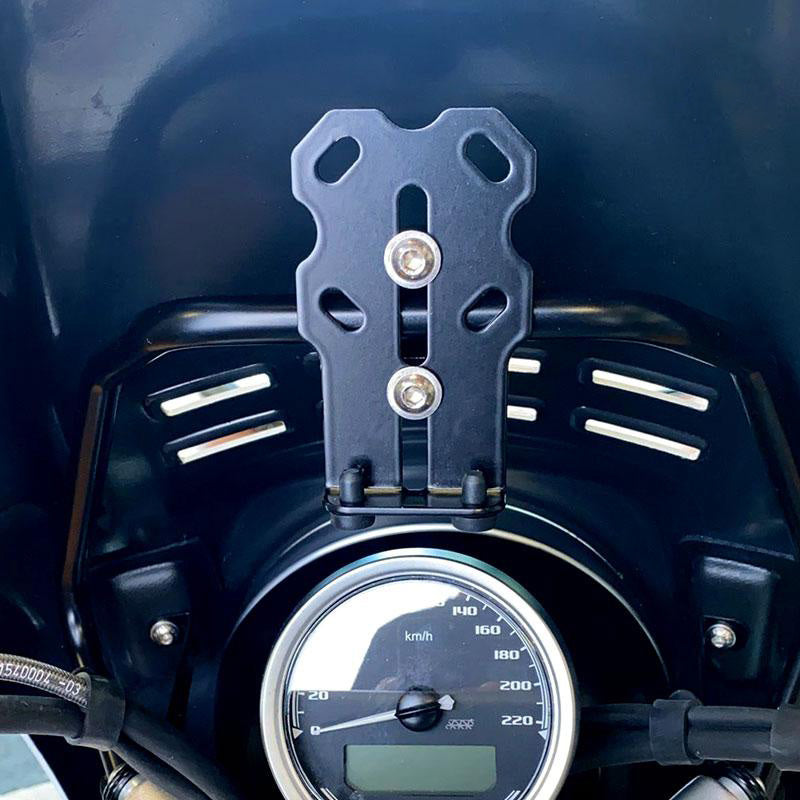

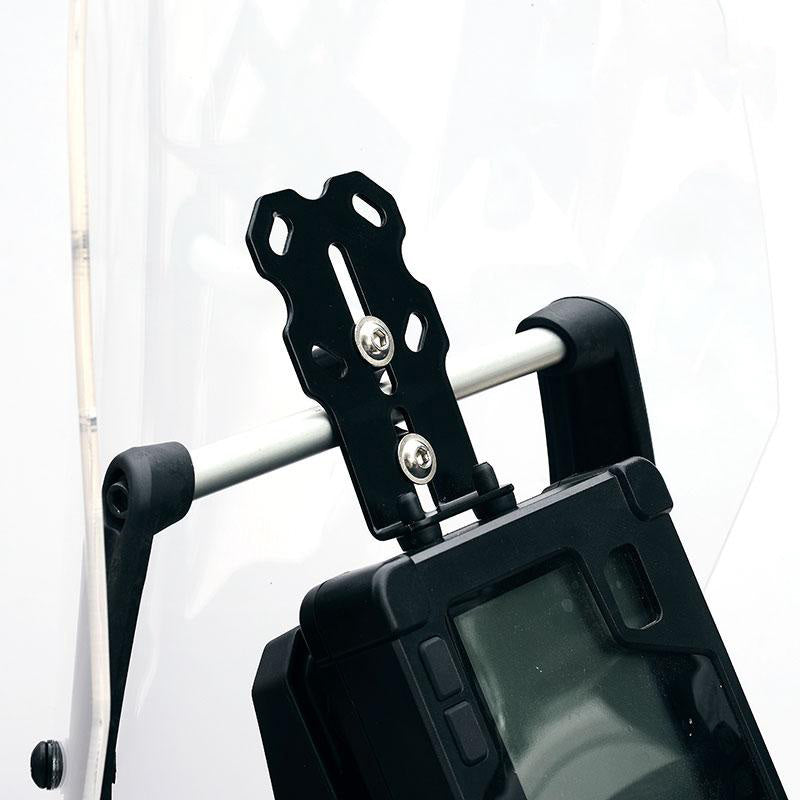

The universal GPS mount was developed for secure attachment that can be adapted to different installation situations. Two CNC-machined Ergal arms enable installation on support tubes with diameters from 12 to 25 mm.

Construction and Function

• Attachment to suitable support tubes
• Sliding base for adapting to different installation situations
• The steel base can be installed in four different positions where the installation situation permits
• Two rubber pads on the base provide support
• AMPS mounting standard with 30 × 38 mm hole spacing

Materials and Finish

• Sliding steel base
• Black epoxy powder coating on the base
• Two CNC-machined Ergal arms in different sizes
• Black arm for tubes from 12 to 18 mm
• Silver arm for tubes from 14 to 25 mm
• Stainless-steel screws for attachment

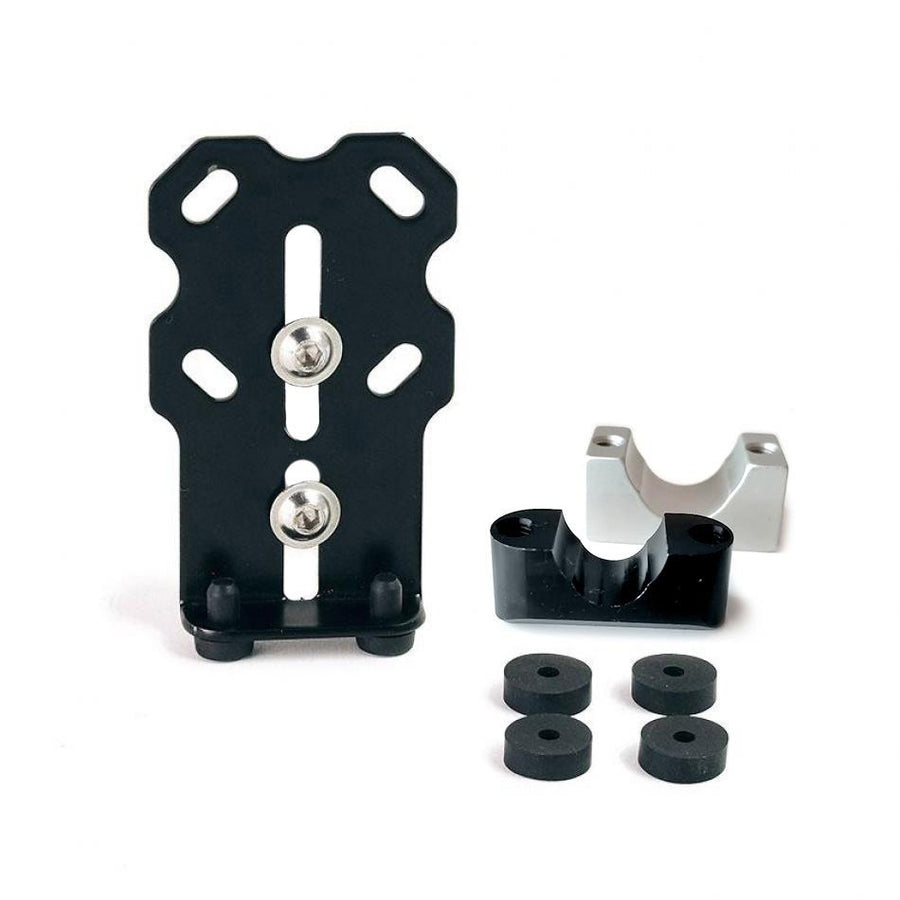

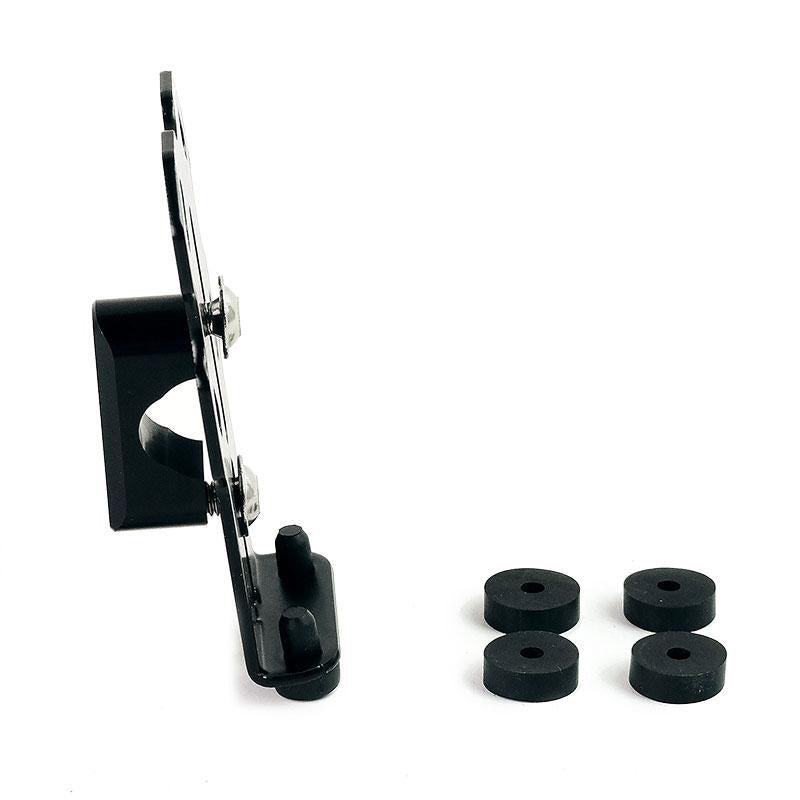

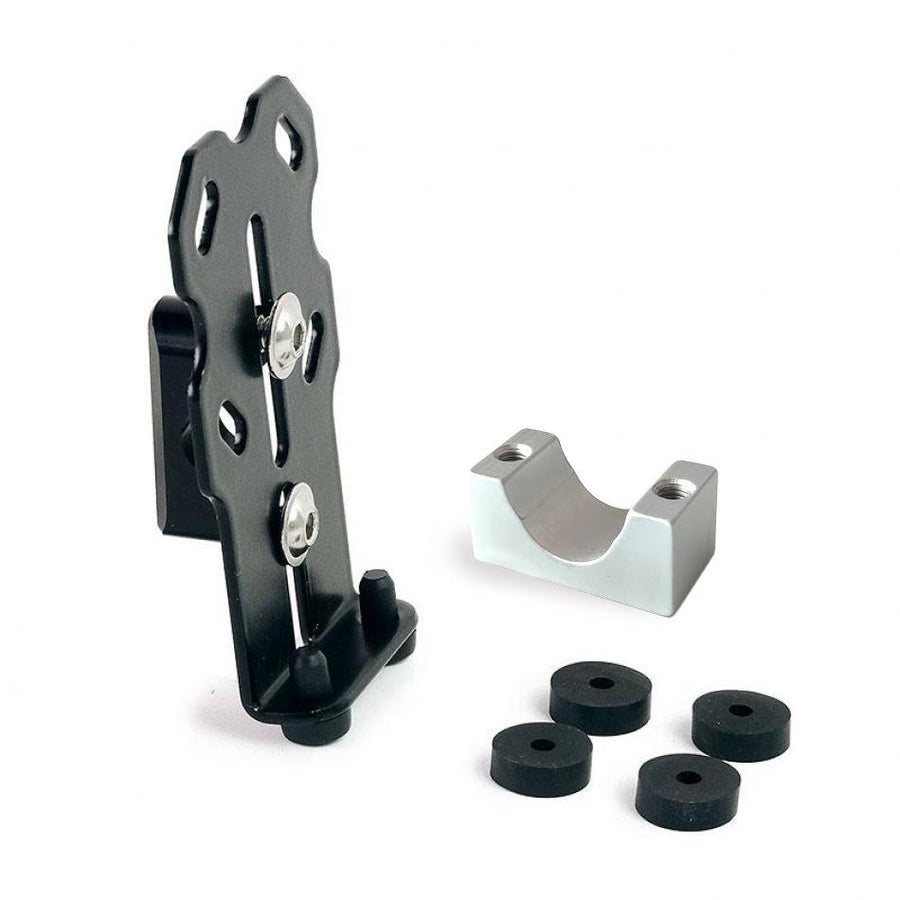

Scope of Delivery

• 1 sliding base made of black epoxy powder-coated steel
• 2 M6 stainless-steel screws
• 1 black Ergal arm for tube diameters from 12 to 18 mm
• 1 silver Ergal arm for tube diameters from 14 to 25 mm
• 4 rubber spacers for attaching the GPS device to the sliding base

Important Installation Note

The four screws for attaching the GPS device are not included. They vary depending on the navigation device and are normally supplied with the GPS device.

Compatibility

The mount is compatible with the BMW R 1200 GS LC and universally designed for suitable support tubes with a diameter of 12 to 25 mm. The tube diameter and installation situation must be checked before installation.

The manufacturer continuously optimizes the product. Images may therefore show an earlier version.
