BMW R 1300 GS Adventure [2024–2026] - Universal GPS Mount

Adjustable GPS mounting for tubes from 12 to 25 mm

The universal GPS mount enables secure attachment of a navigation device to suitable support tubes. Two differently sized CNC-machined Ergal arms and a sliding base allow adjustment to different tube diameters and installation situations.

Flexible mounting

• Suitable for tubes with a diameter of 12 to 25 mm
• Black Ergal arm for tubes from 12 to 18 mm
• Silver Ergal arm for tubes from 14 to 25 mm
• Sliding steel base, mountable in four positions depending on the installation situation
• Two rubber pads on the base serve as supports
• AMPS mounting standard with 30 × 38 mm hole spacing

Materials and construction

• Two CNC-machined arms made of Ergal
• Sliding steel base
• Black epoxy powder coating on the steel base
• Stainless steel mounting screws
• Rubber spacers between the GPS device and sliding base

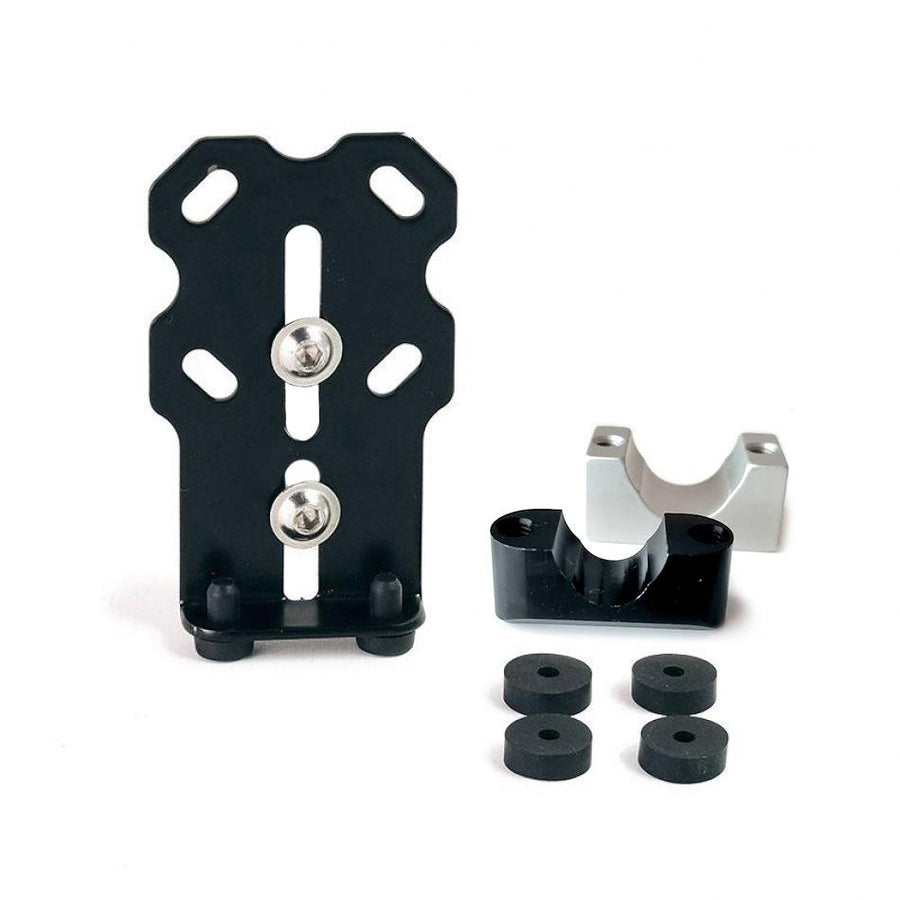

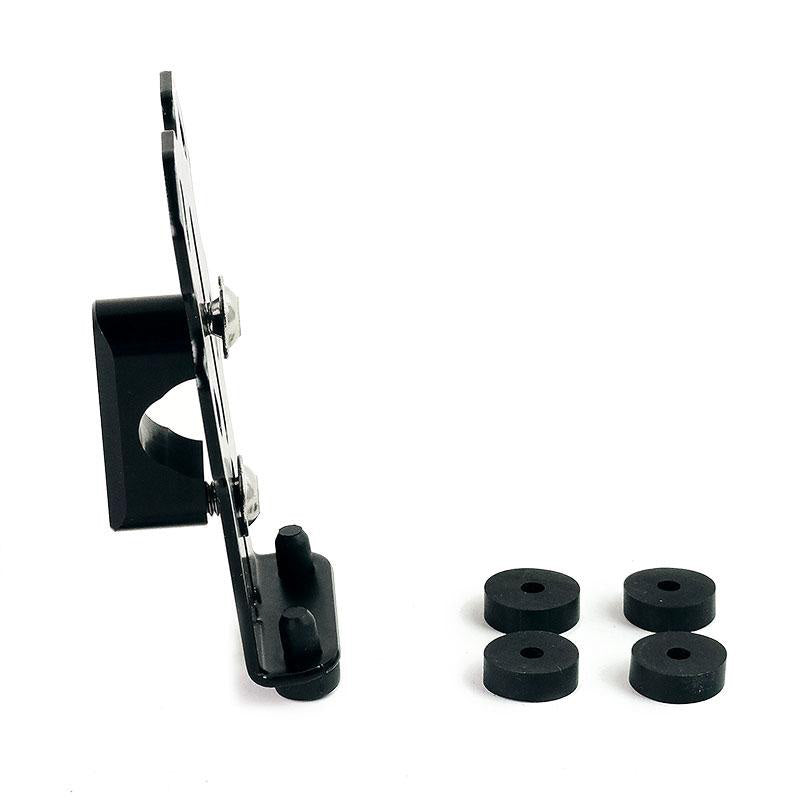

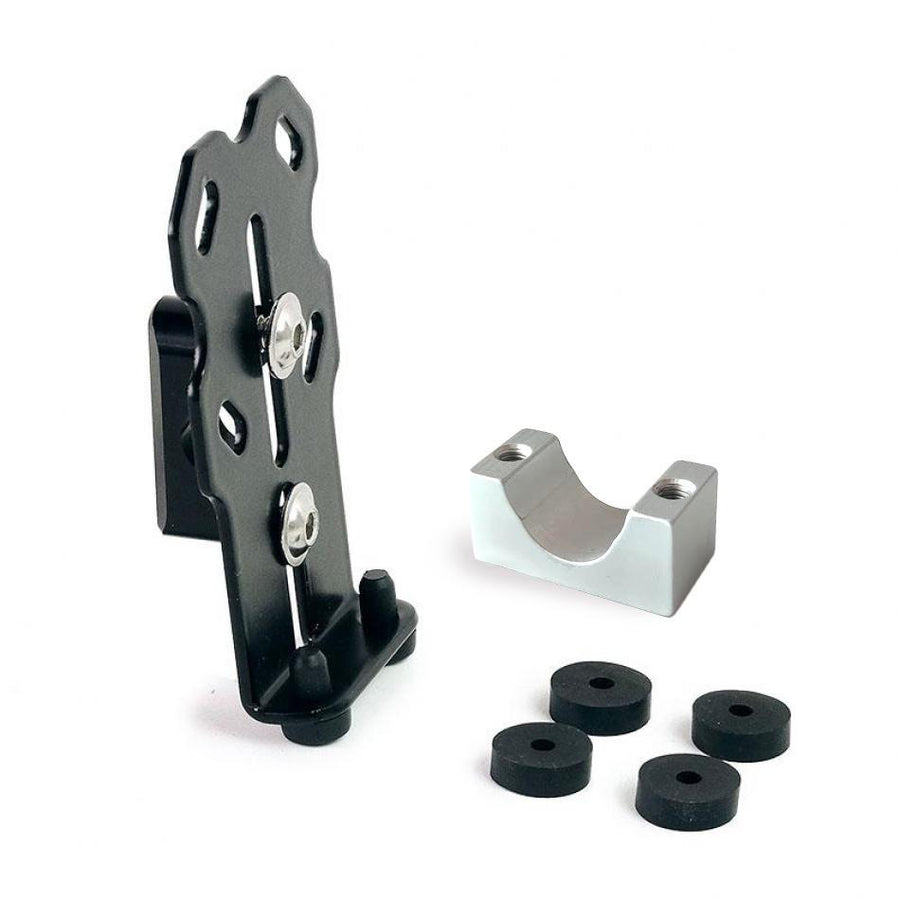

Scope of delivery

• One sliding steel base with black epoxy powder coating
• Two M6 stainless steel screws
• One black Ergal arm for tubes from 12 to 18 mm
• One silver Ergal arm for tubes from 14 to 25 mm
• Four rubber spacers for mounting the GPS to the sliding base

The four mounting screws for the GPS device are not included, as they vary by model and are normally supplied with the GPS.

Compatibility

The mount is listed for the BMW R 1300 GS Adventure and can be universally installed on suitable support tubes with a diameter of 12 to 25 mm. The tube diameter and available installation position must be checked before installation.

The product is continuously refined in detail. Images may therefore show an earlier version.
