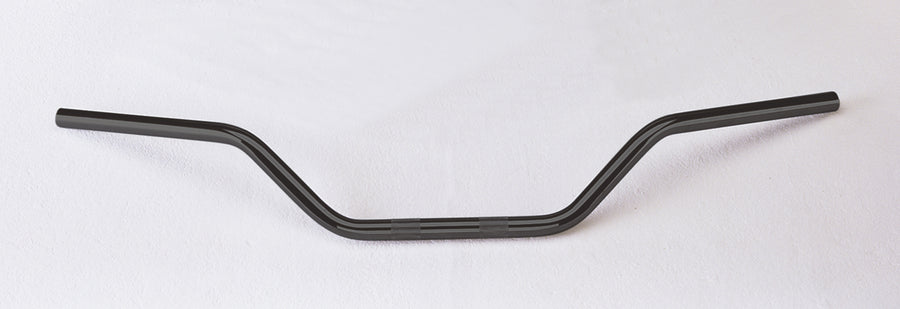

Motorcycle driver Ø 22 mm (7/8 ") - Superbike -Lenker 870 mm wide, black

Product information: Superbike driver from Fehling

The Superbike Leaders from Fehling, model Ø 22 mm (7/8 "), offers a width of 870 mm and is available in black. This motorcycle part is designed for various years of construction, but specific construction years are not specified.

Technical details

• Brand: False
• Model: Ø 22 mm (7/8 ")
• Article: Superbike handlebar 870 mm wide, black

Measure

The dimensions of the handlebar vary depending on the assembly position and cultivation. Below you will find an overview of the most important dimensions in the standard cultivation:

• Total width: 870 mm
• Height at the end of the external bend: 135 mm
• Depth back: 120 mm
• Height at the end of the end of the handle: 150 mm
• Measure at the intersection of the pipe outer edges: 200 mm
• Height in attachment: 115 mm
• Depth back in the attachment (pullback): 155 mm
• Maximum grip length: 205 mm
• Maximum clamping width: 182 mm
• Width of the knurling (outside): 120/60 mm

These dimensions are guidelines and can vary depending on the assembly and specific motorcycle model. The exact dimensions should be checked before installation to ensure an optimal fit and function.
