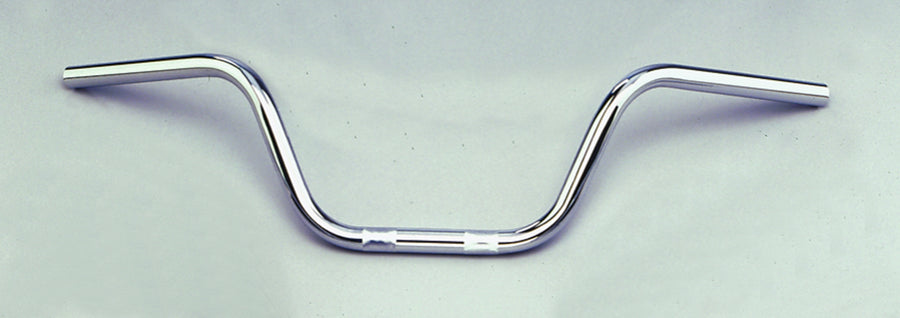

Motorcycle driver Ø 22 mm (7/8 ") - Tour -steering 745 mm wide

Tour handlebars 745 mm wide

Motorcycle driver Ø 22 mm (7/8 ")

Description

The tour guide from the Fehling brand, model Ø 22 mm (7/8 "), is characterized by a width of 745 mm and is suitable for different motorcycle models, whereby the exact years of construction are not specified.

• Technical dimensions: The dimensions were determined with vertically standing handlebars. The actual dimensions can vary depending on the extension.
• Width: 745 mm
• Height at the end of the external bend: 170 mm
• Depth back: 150 mm
• Height at the end of the end of the handle: 155 mm
• Dimensions at the intersection of the pipe outer edges: 175 mm

Further dimensions in attachment:

• Height: 180 mm
• Depth back (pullback): 120 mm

Additional dimensions:

• Maximum grip length: 185 mm
• Maximum clamping width: 127 mm
• Width of the knurling (outside): 120/60 mm

This HTML code represents a factual and precise product description of the tour guide from Fehling, including all relevant dimensions and technical details that are important for potential buyers.
