Piaggio Liberty 125 IE Iget 3 V S ABS E 4 (M 891) [2015-2019] - aluminum cylinder ø 63 pin ø 14 4-stroke

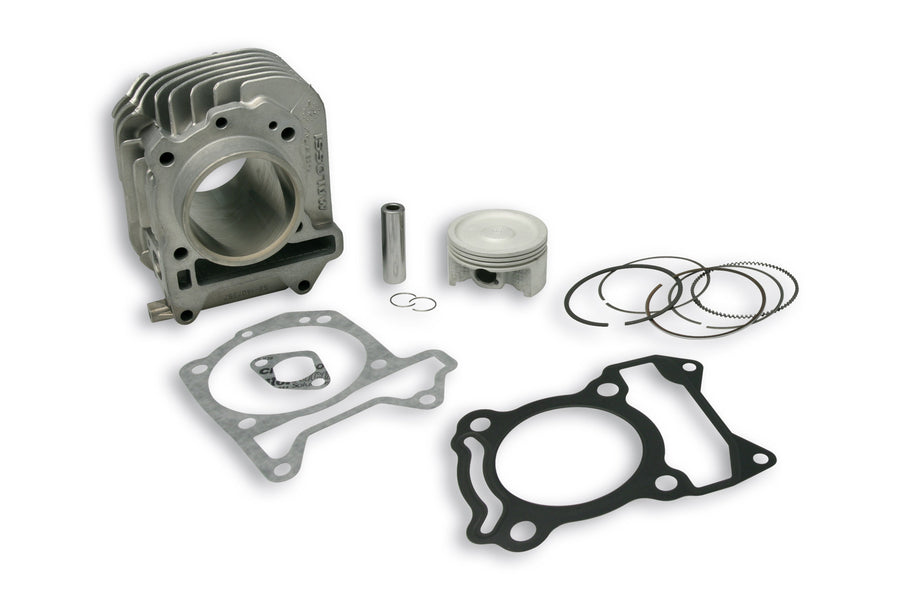

MALOSSI aluminum cylinder for Piaggio Liberty 125 iGet

The MALOSSI aluminum cylinder with 63 mm bore and 14 mm piston pin is designed for the Piaggio Liberty 125 IE iGet 3 V S ABS E 4 (M 891) from the 2015-2019 model year range. The 4-stroke cylinder has a stroke of 58.6 mm and achieves a displacement of 182.67 cm³ with a compression ratio of 11.15:1.

Technical features

• Material: Primary aluminum alloy with a high proportion of hardened and tempered silicon
• Bore: 63mm
• Stroke: 58.6mm
• Displacement: 182.67 cm³
• Compression ratio: 11.15:1
• Cylinder liner with silicon carbide coating in electroplated nickel form
• Cross smoothing with two diamond passes and very limited tolerances
• Cylinder-piston connection with a tolerance of 0.05 mm

Pistons and piston rings

The ultra-compact three-ring piston is made of a special aluminum alloy with a high silicon content and low thermal expansion. The sliding surfaces have a tin coating. The piston is reduced in weight and reinforced; its heat exchange surfaces have been improved. Production takes place on numerically controlled machine tools.

The ring set includes a nitrided and chrome-plated steel I-ring, a special cast ring and a three-part wiper ring made of special chrome-plated steel alloy. The piston rings are designed for high sliding properties and high mechanical strength.

Vehicle assignment and use

Suitable for Piaggio Liberty 125 IE iGet 3 V S ABS E 4 (M 891), built between 2015 and 2019. Installation is intended exclusively with the Force Master 2.1 control unit. This product is intended exclusively for racing at designated venues in accordance with the regulations of the relevant sports authorities.
