Piaggio Liberty 125 IE Iget 3 V S ABS E 4 (MA 61) [2019-2020] - aluminum cylinder ø 63 pin ø 14 4-stroke

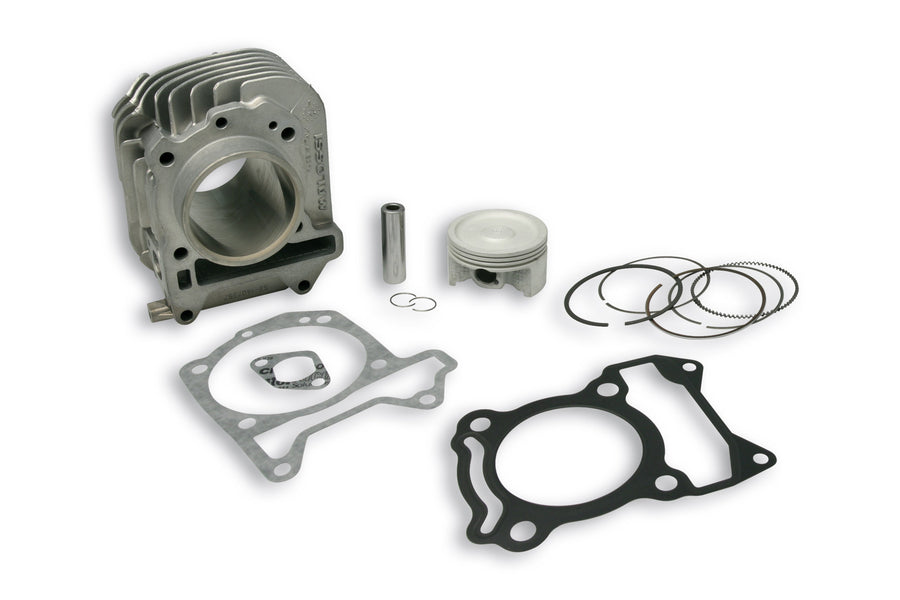

MALOSSI aluminum cylinder for Piaggio Liberty 125 iGet

The MALOSSI aluminum cylinder with 63 mm bore, 14 mm piston pin and 4-stroke version is designed for the Piaggio Liberty 125 IE iGet 3 V S ABS E 4 (MA 61) in the 2019-2020 model year range. The component is assigned to the Big Bore Kit category and is intended for use in competitions at designated venues.

Technical features

• Bore: 63mm
• Stroke: 58.6mm
• Displacement: 182.67 cm³
• Compression ratio: 11.15:1
• Material: aluminum
• Piston compression: Racing

The cylinder is made of a primary aluminum alloy with a high proportion of hardened and tempered silicon. The cylinder liner has a silicon carbide coating in electroplated nickel form and crossed smoothing with two diamond passes. Machining is carried out on numerically controlled machine tools. A cylinder-piston connection with a tolerance of 0.05 mm and revised heat exchange surfaces are among the technical design features.

Pistons and piston rings

The ultra-compact three-ring piston is made of a special aluminum alloy with a high silicon content and low thermal expansion. A tin coating on the sliding surfaces supports the design of the component. The piston is weight-reduced and reinforced. The ring set includes a nitrided and chrome-plated steel I-ring, a special cast ring and a three-part wiper ring made of special chrome-plated steel alloy.

Vehicle assignment and assembly instructions

Suitable for Piaggio Liberty 125 IE iGet 3 V S ABS E 4 (MA 61), years 2019-2020. Installation is intended exclusively with the Force Master 2.1 control unit. The product is intended exclusively for racing in specially designated locations in accordance with the regulations of the relevant sports authorities. No liability is assumed for improper use.
