Piaggio Liberty 150 IE Iget 3 V S E 5 [2021-2024] - aluminum cylinder ø 63 pin ø 14 4-stroke

✔️ New part
ID: 15713659748678

$510.21 USD

DELIVERY
Ready to ship | in 2-6 business days
Delivery with DHL in 7-14 business days.
PRODUCT DESCRIPTION

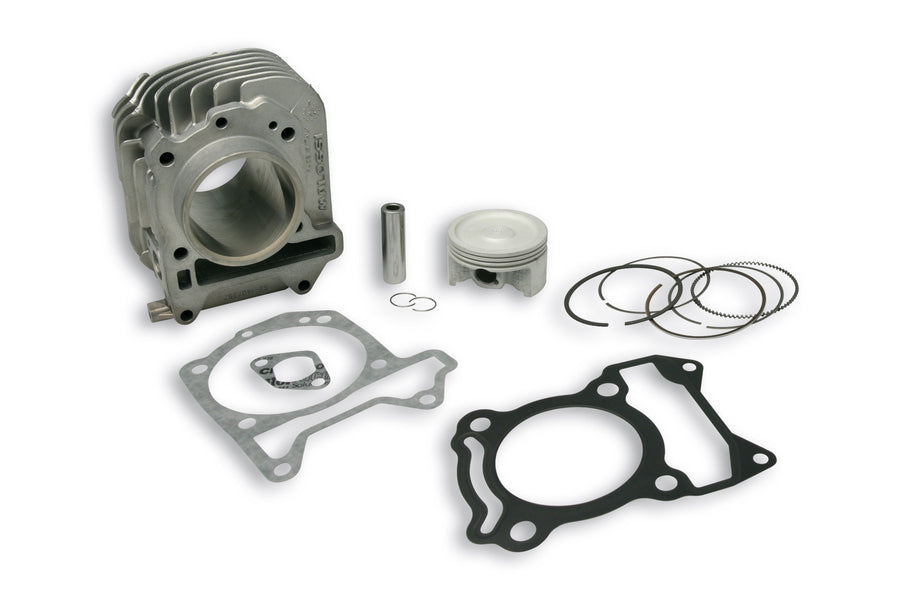

MALOSSI aluminum cylinder for Piaggio Liberty 150 iGet

The MALOSSI aluminum cylinder ø 63 ø 14 4-stroke is designed as a racing component for the Piaggio Liberty 150 IE Iget 3 V S E 5 from 2021-2024. The design combines a bore of 63 mm with a stroke of 58.6 mm and a displacement of 182.67 cm³.

Technical features

  • Material: aluminum
  • Bore: 63mm
  • Stroke: 58.6mm
  • Displacement: 182.67 cm³
  • Compression ratio: 11.15:1
  • Piston compression: Racing
  • Cylinder-piston connection with a tolerance of 0.05 mm

The cylinder is made of a primary aluminum alloy with a high content of hardened and tempered silicon. The cylinder liner has a silicon carbide coating in an electroplated nickel form and cross smoothing with two diamond passes and very limited tolerances. Machining is carried out on machine tools with high-precision numerical control. Recalculated and improved heat exchange surfaces support the structural design of the cylinder.

Pistons and piston rings

The ultra-compact three-ring piston is made of a special aluminum alloy with high silicon content, low thermal expansion and a tin coating on the sliding surfaces. It is weight-reduced and reinforced. The piston rings include an I-ring made of nitrided and chrome-plated steel, a special cast ring and a three-part wiper ring made of special chrome-plated steel alloy.

Vehicle assignment and use

Suitable for Piaggio Liberty 150 IE Iget 3 V S E 5, years 2021-2024. Installation is carried out exclusively with the Force Master 2.1 control unit. The product is intended exclusively for racing in specially designated locations in accordance with the regulations of the relevant sports authorities.

Description

MALOSSI aluminum cylinder for Piaggio Liberty 150 iGet

The MALOSSI aluminum cylinder ø 63 ø 14 4-stroke is designed as a racing component for the Piaggio Liberty 150 IE Iget 3 V S E 5 from 2021-2024. The design combines a bore of 63 mm with a stroke of 58.6 mm and a displacement of 182.67 cm³.

Technical features

  • Material: aluminum
  • Bore: 63mm
  • Stroke: 58.6mm
  • Displacement: 182.67 cm³
  • Compression ratio: 11.15:1
  • Piston compression: Racing
  • Cylinder-piston connection with a tolerance of 0.05 mm

The cylinder is made of a primary aluminum alloy with a high content of hardened and tempered silicon. The cylinder liner has a silicon carbide coating in an electroplated nickel form and cross smoothing with two diamond passes and very limited tolerances. Machining is carried out on machine tools with high-precision numerical control. Recalculated and improved heat exchange surfaces support the structural design of the cylinder.

Pistons and piston rings

The ultra-compact three-ring piston is made of a special aluminum alloy with high silicon content, low thermal expansion and a tin coating on the sliding surfaces. It is weight-reduced and reinforced. The piston rings include an I-ring made of nitrided and chrome-plated steel, a special cast ring and a three-part wiper ring made of special chrome-plated steel alloy.

Vehicle assignment and use

Suitable for Piaggio Liberty 150 IE Iget 3 V S E 5, years 2021-2024. Installation is carried out exclusively with the Force Master 2.1 control unit. The product is intended exclusively for racing in specially designated locations in accordance with the regulations of the relevant sports authorities.
