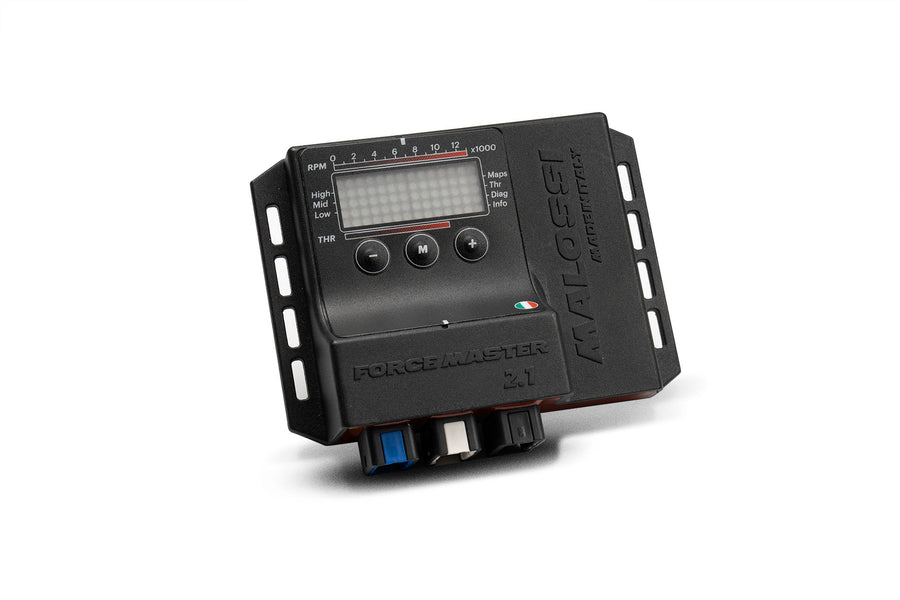

Yamaha X-MAX 125 ABS (SE 54) [2011-2012] - Electronic ignition box Force Master 2.1

MALOSSI Force Master 2.1 for Yamaha X-MAX 125 ABS

The Force Master 2.1 electronic ignition box is designed to adapt the performance management of the Yamaha X-MAX 125 ABS (SE 54) from the 2011-2012 model year range. A revised user interface makes configuration easier. Interfaces for K and CAN lines are available for communication; The ignition box also has a capacitive ignition input.

Functions and setting ranges

• Carburetor power adjustment in the range of ± 14% for LOW / HIGH / MEDIUM
• Speed limiter: +1,200 RPM
• Four selectable maps for different combinations of exhaust system, cylinder, cylinder head, camshaft and filter

The speed limiter can be adjusted beyond the original limit range. The four maps support a targeted selection suitable for the vehicle configuration mentioned:

• Curva 0: Original exhaust system, original cylinder, original head, original camshaft and original filter
• Curva 1: Original exhaust system, Malossi cylinders, original head, original camshaft and original filters
• Curva 2: Malossi exhaust system with DB killer, Malossi cylinder, original head, original camshaft and original filter
• Curva 3: Malossi exhaust system with DB killer, Malossi cylinder, original head, Malossi camshaft and original filter

Technical data

• Temperature range: -30°C +80°C
• Minimum operating voltage: +7V
• Maximum operating voltage: +16V
• Average current consumption: <-200mA
• Protection class: IP65

The ignition box is exclusively assigned to the Yamaha X-MAX 125 ABS (SE 54) for the years 2011-2012.
