Yamaha XS 650 1100 TX 750 [all years] - LTD-Style headlight H4, 7 inch, clear glass

LTD style light for classic Yamaha roadsters

The XS 650, XS 1100 and TX 750 form a classic framework for individual roadster conversions. The universal 7-inch LTD-style main headlight described here uses a black housing, clear lens and an H4 prism reflector. The model names support the design selection, but do not represent a proven assignment to years of manufacture or variants.

Compare dimensions first

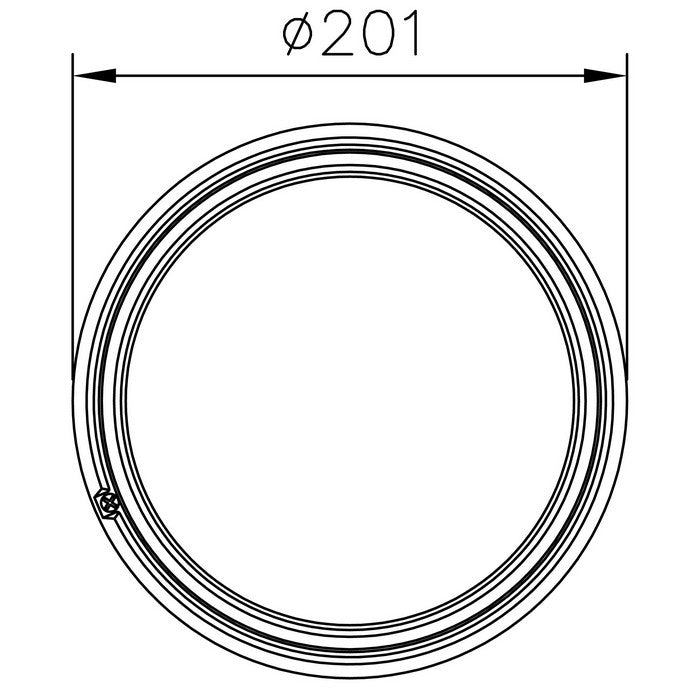

The case measures 201 mm on the outside and is 138 mm deep. The glass/reflector diameter is 168 mm. The headlight is attached to the side using M8; the distance is 200 mm. These values ​​should be compared directly with the brackets, fork area and available installation space of the respective Yamaha.

Light and checkpoints

• 12V 60/55W H4 prism reflector
• Parking light 4 W at 12 V
• Black round case with clear glass
• M8 side mount, 200mm spacing
• E-approved

Before installation, the existing connections as well as their assignment and the electrical design must be checked. There must be enough space for cables behind the housing. Freedom of movement for both steering stops, distances to instruments, cables and cables as well as stable fastening must also be taken into account.

The E-test of the component is not a blanket proof of the admissibility of any conversion. The installation location, setting and overall configuration must be checked on the specific XS 650, XS 1100 or TX 750.
