Yamaha YFM 700 Grizzly EPS Camo 4 WD [2007-2013] - forged pistons

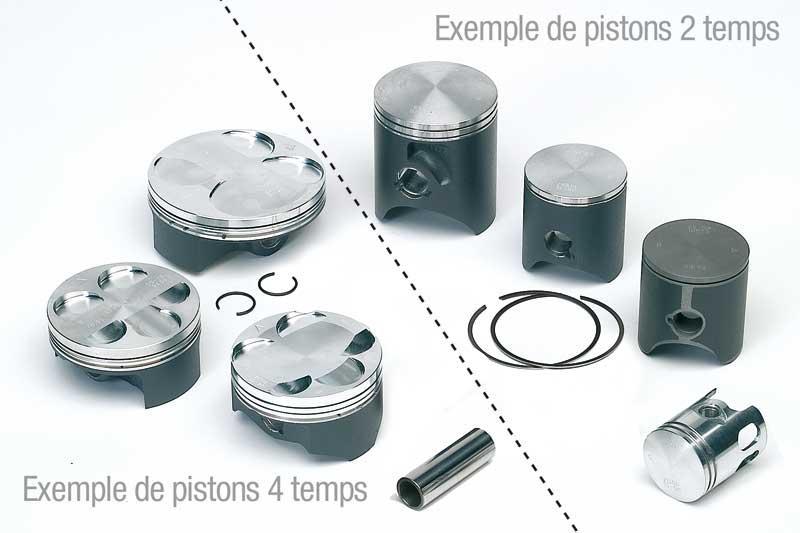

VERTEX forged piston for Yamaha YFM 700 Grizzly EPS Camo 4 WD

The VERTEX forged piston is designed for the Yamaha YFM 700 Grizzly EPS Camo 4 WD from the full year range 2007-2013. As a component for the upper engine range, it combines a forged design with a defined standard piston compression value.

VERTEX specializes in the production of engine components for off-road machines and is used as an original equipment manufacturer by numerous motorcycle manufacturers. The piston is made of aluminum and is designed for a 4T engine.

Technical data

• Piston Type: Forged
• Material: aluminum
• Piston compression: standard
• Diameter Ø: 101.96 mm
• Letter oversize: B
• Oversize: +0.01
• Bore diameter: 102.00 mm
• Compression ratio: 9.2:1
• Rings Quantity: Set
• Stroke: 4T

Vehicle assignment

The forged piston is intended for the following vehicle:

• Yamaha YFM 700 Grizzly EPS Camo 4WD, built 2007-2013

The piston diameter of 101.96 mm, the bore diameter of 102.00 mm and the marking B and oversize +0.01 are particularly relevant for the selection. These technical values ​​make it easier to compare the existing engine and the intended version.
